SRS-60-100 M
Adjustable corner piece
Categories SRS height=60mm[+]

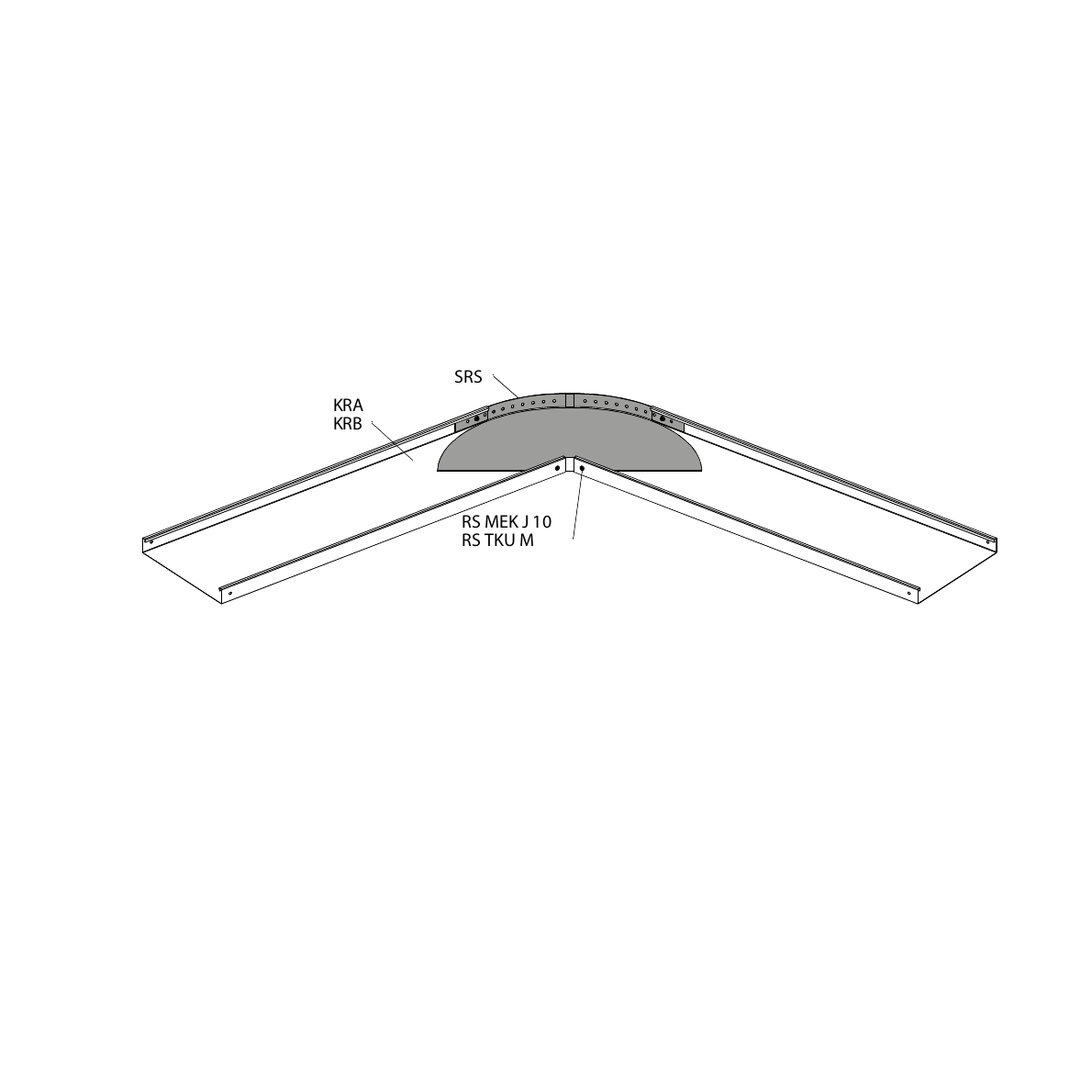

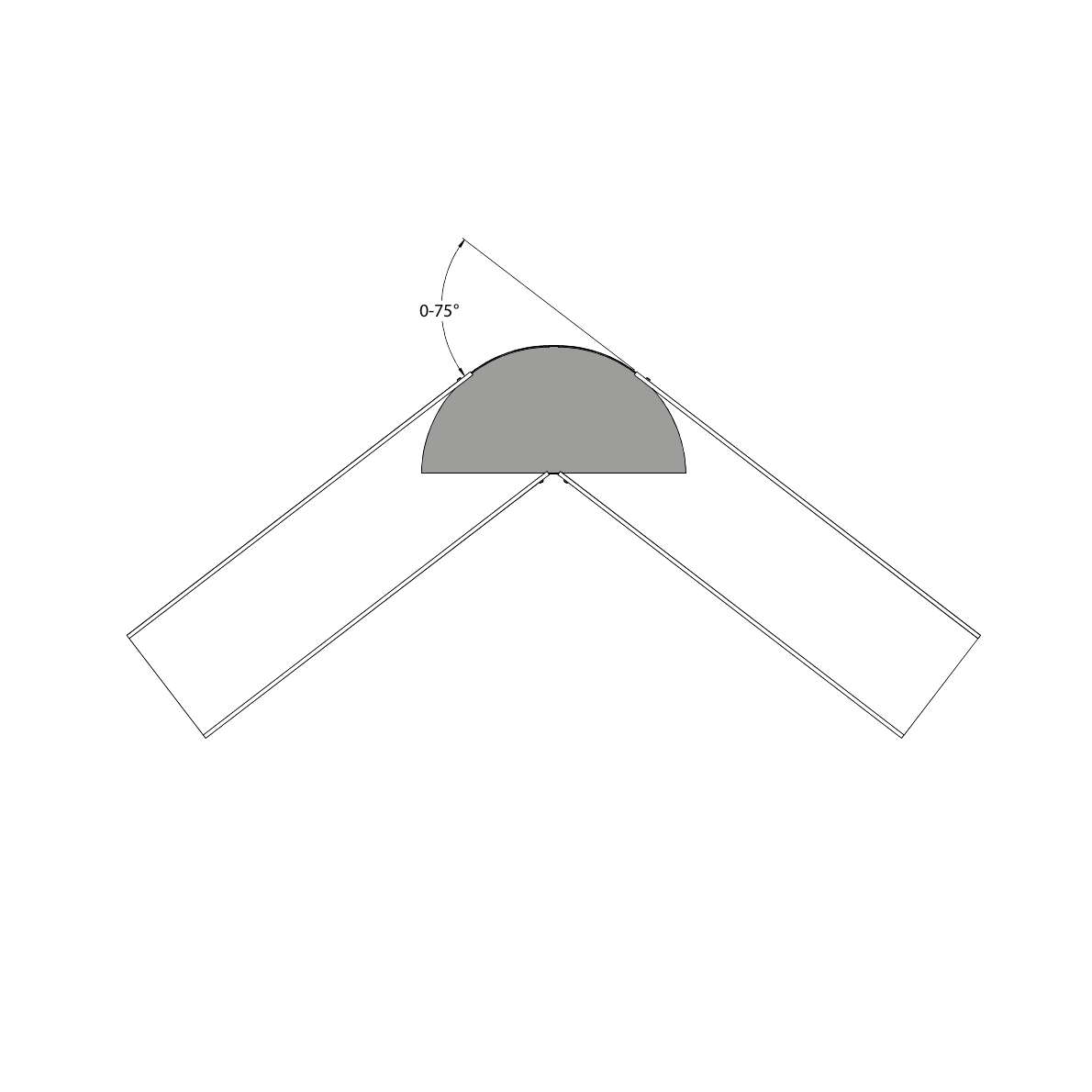

Adjustable corners SRS are used to make 0–75° horizontal angles for cable trays KRA and KRB. Jointing of SRS corners to cable trays is fast and easy, because corners have joint slats already at place.
Product set includes bolts and nuts for fastening.
Product Attributes
Dimension Data
Video
Product Attributes
Product Name
SRS-60-100 M
SKU
1432231
Color
White
Material
Steel
Surface Finish
White RAL 9010 polyester paint coating
GTIN Code
6438377013998
Corrosion Category
C1-C2
Fire Resistance
Loading Capacity kg
Sales Unit
PCE
Packing Size
2 PCE
Carbon Footprint kg/PCE
0.743
Stock Status
Not in Stock
Dimension Data
Length (mm)
276
Width (mm)
97
Height (mm)
57
Dimension L (mm)
Dimension A (mm)
97
Dimension B (mm)
210
Dimension C (mm)
276
Dimension D (mm)
Dimension E(mm)
Dimension F (mm)
Dimension G (mm)
Dimension H (mm)
57
Material thickness (mm)
Weight kg/PCE
0.29
Video
