RX-40-100 PG

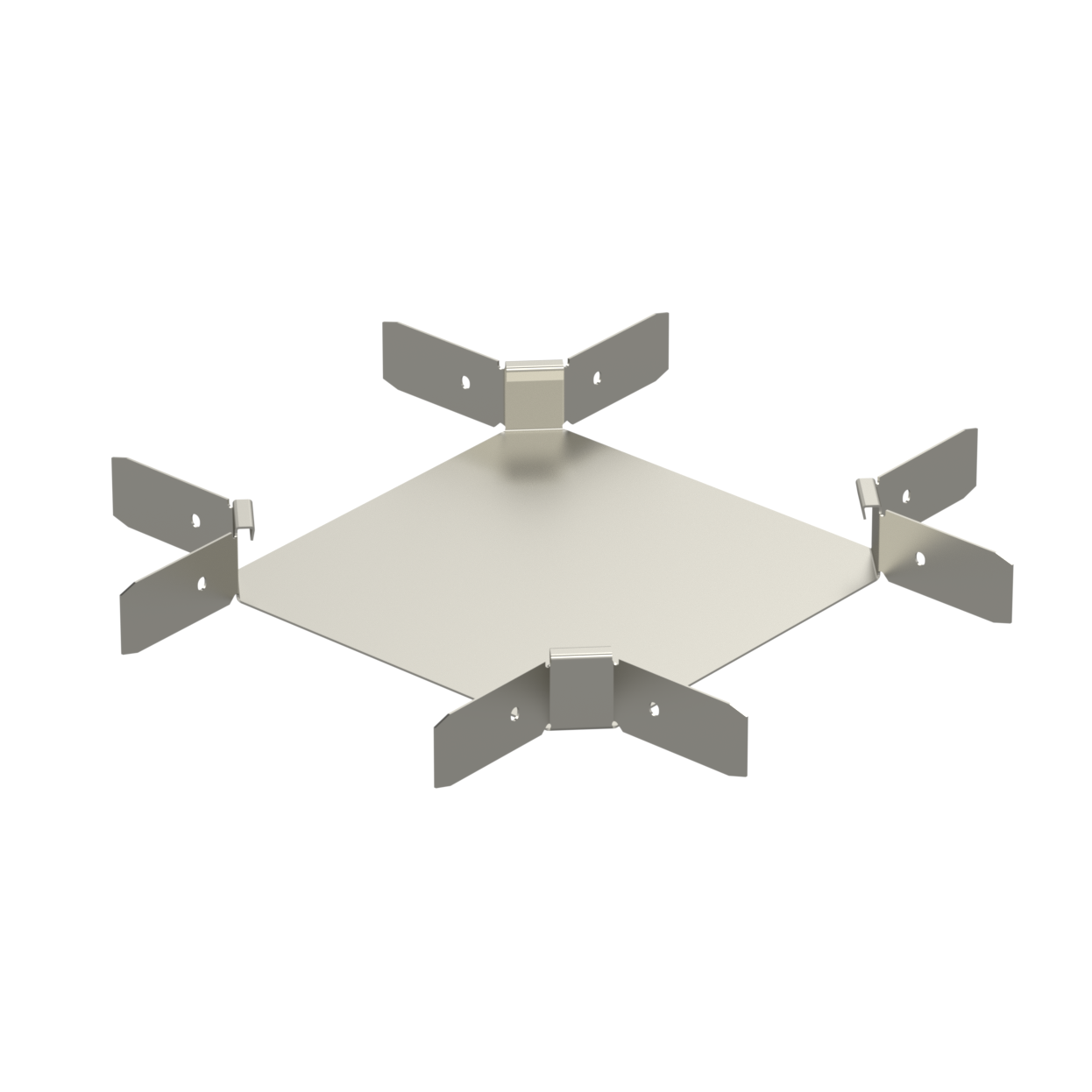

X-piece
Categories RX x-pieces, RX height=40mm[+]

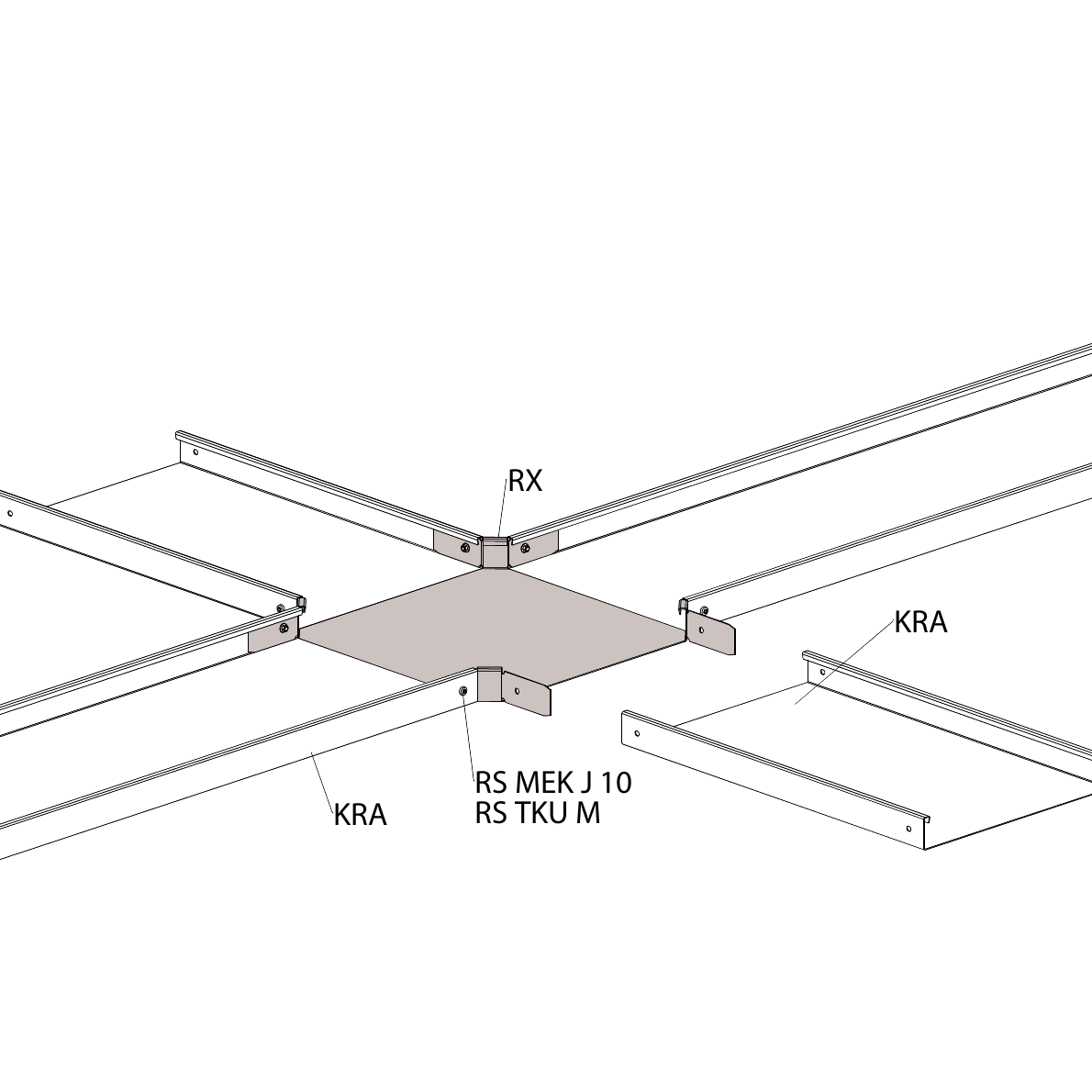

X-pieces RX are used to make X-junctions for cable trays KRA and KRB. Jointing of RX to cable trays is fast and easy, because X-pieces have joint slats already at place.
Product set includes bolts and nuts for fastening.
Product Attributes
Dimension Data
Video
Product Attributes
Product Name
RX-40-100 PG
SKU
1431391
Color
Grey
Material
Steel
Surface Finish
Manufactured of hot-dip galvanized steel in accordance with standard EN 10346
GTIN Code
6438377010270
Corrosion Category
C1-C2
Fire Resistance
Loading Capacity kg
Sales Unit
PCE
Packing Size
2 PCE
Carbon Footprint kg/PCE
0.82
Stock Status
Not in Stock

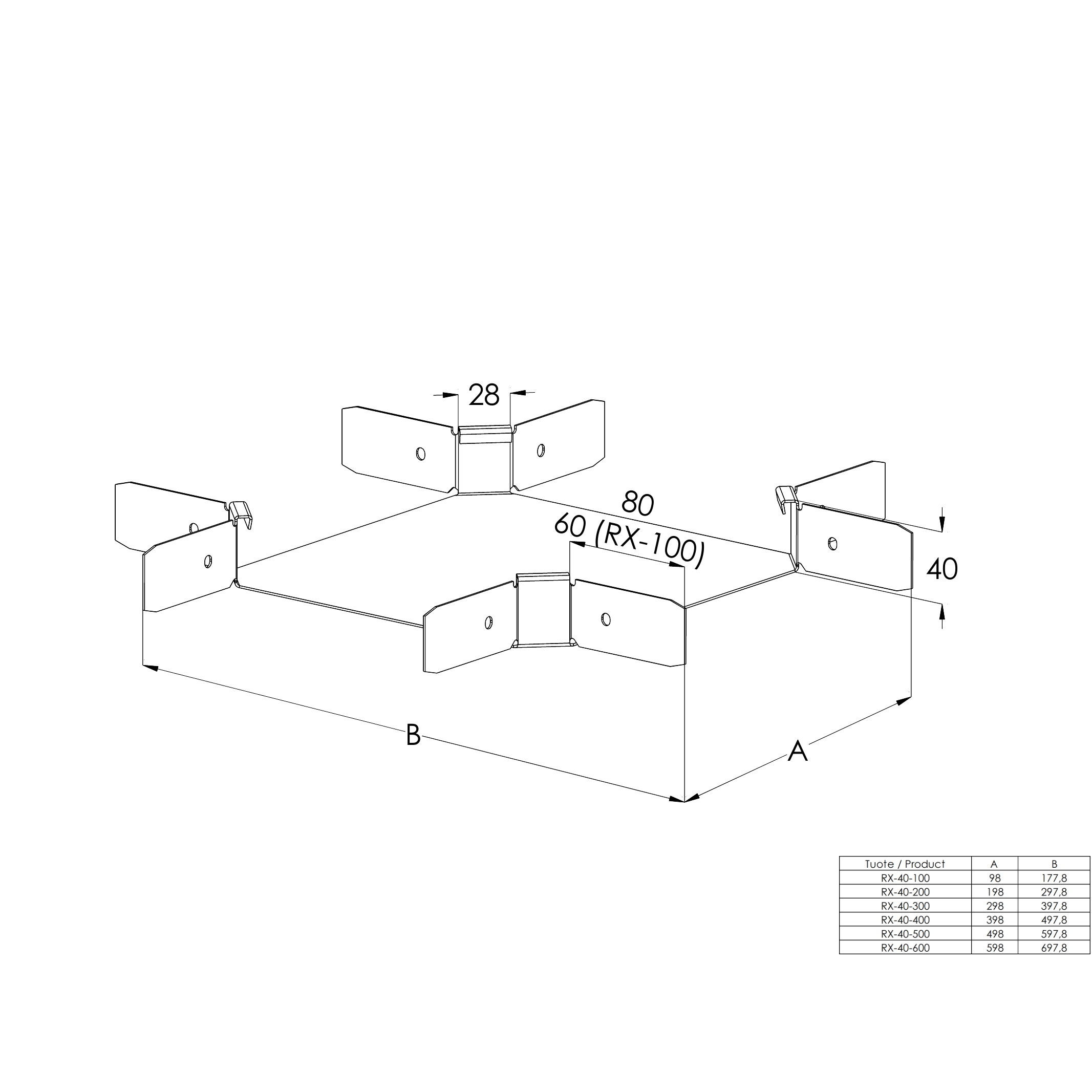

Dimension Data
Length (mm)
178
Width (mm)
178
Height (mm)
38
Dimension L (mm)
Dimension A (mm)
98
Dimension B (mm)
Dimension C (mm)
Dimension D (mm)
Dimension E(mm)
Dimension F (mm)
Dimension G (mm)
Dimension H (mm)
40
Material thickness (mm)
Weight kg/PCE
0.32
Video
