PK2 HDG
Cable ladders / KSF80 / Accessories / PK beam fasteners
Cable ladders / KS100 / Accessories / PK beam fasteners
Cable ladders / KS80 SP2.0 / Accessories / PK beam fasteners
Cable ladders / KS20 K / Accessories / PK beam fasteners
Cable ladders / KS20 / Accessories / PK beam fasteners
Cable ladders / KS60 / Accessories / PK beam fasteners
Cable ladders / KS80 / Accessories / PK beam fasteners
Cable ladders / KSE80 / Accessories / PK beam fasteners
[-]

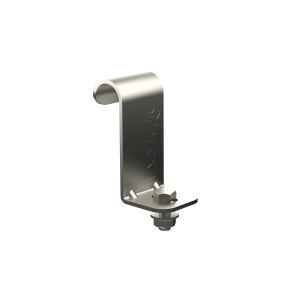

Beam brackets PK2 are used to fasten TP- and HK-type ceiling supports to I-beams via AS or ASR support rail. Two PK2 clamps and AS rail of suitable length are required to attach one support. Ceiling supports can be fixed to the AS rail with two M8x25 bolts and an M8 nut (bolt sets RS K). The thickness of the I-beam at the attachment point is max. 18 mm.
Safe work load of PK2 brackets is 300 kg.
Loading Capacity kg
Length (mm)
Width (mm)
Height (mm)
Dimension L (mm)
Dimension A (mm)
Dimension B (mm)
Dimension C (mm)
Dimension D (mm)
Dimension E(mm)
Dimension F (mm)
Dimension G (mm)
Dimension H (mm)
Material thickness (mm)
Weight kg/PCE
Meka’s(*) product range is available in friendly and ready-to-be-used 2D-, 3D-, and Revit models.
Please contact technicalsupport@meka.eu to receive:
- 2D model of the product in DWG format
- 3D model of the product in STP format
- Autodesk™ Revit model
For your need to work on product models without a separate download, please request access to the Aveva™ E3D Design software.
(*)Not avaible for Unipro lighting tracks and adapters.
