MEK 70 L=6000 PG

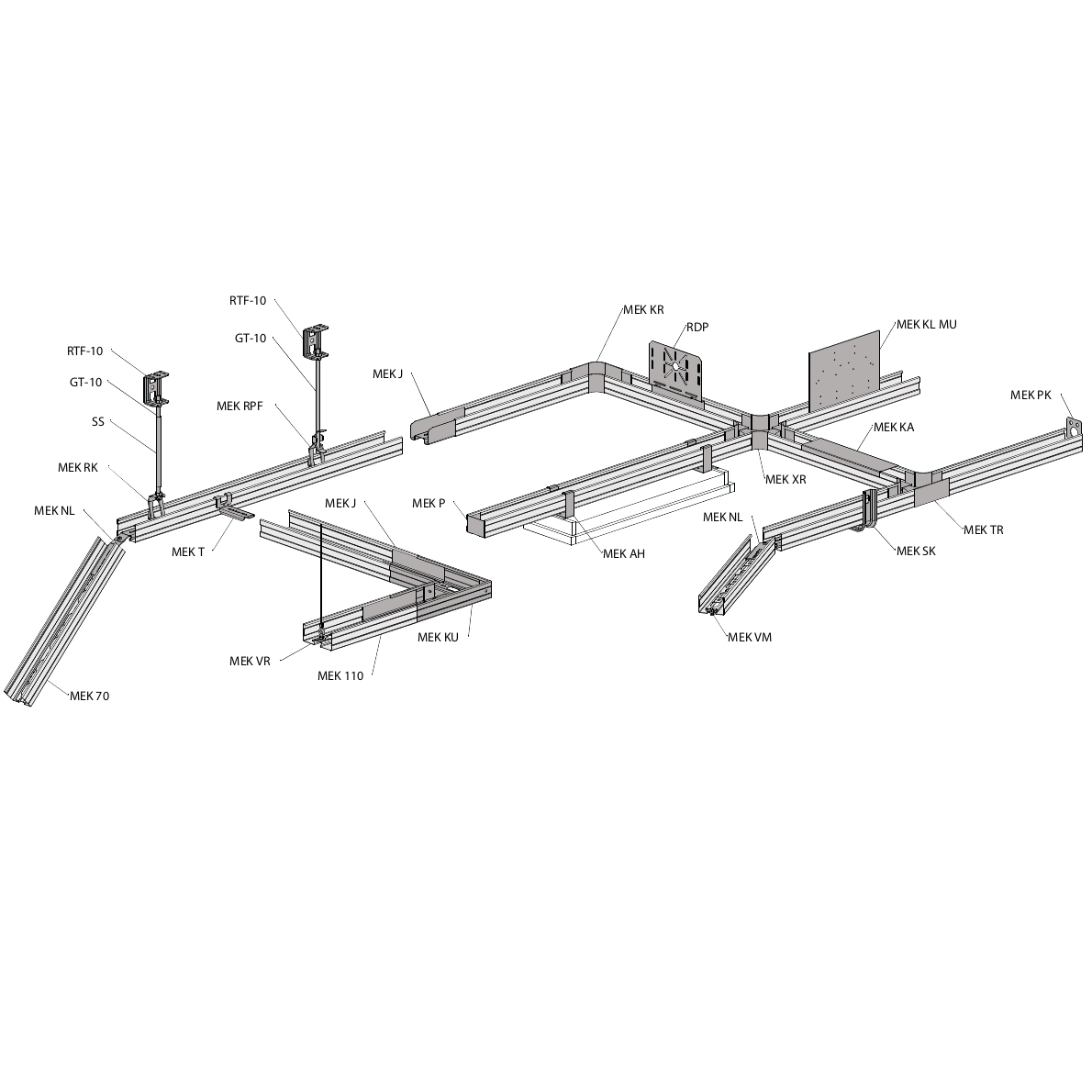

Lighting support rails MEK 70 are used for installation of luminaries, cables and other devices in shopping centres, schools, office- and commercial buildings, parking halls as well as in industrial buildings. Unique MEK profile allows longer spans that save time for mounting and reduce costs for installation accessories. For fixing luminaries to rails brackets MEK AH, sliding nuts MEK-VM or nut sets MEK VM-L can be used.
MEK 70 are suitable for high loading capacities.

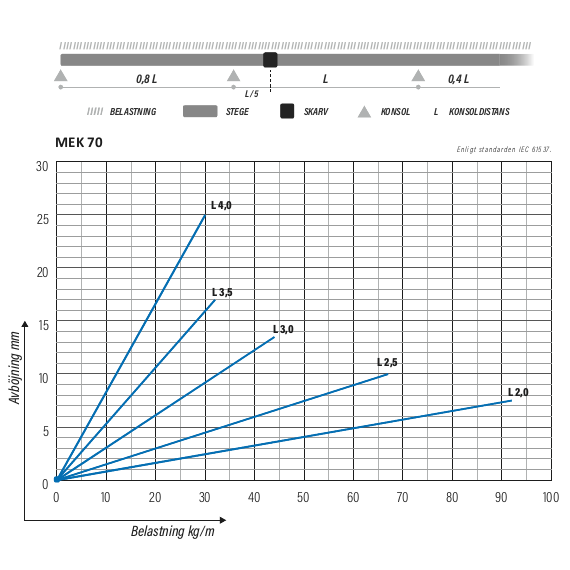

Loading Capacity kg
Length (mm)
Width (mm)
Height (mm)
Dimension L (mm)
Dimension A (mm)
Dimension B (mm)
Dimension C (mm)
Dimension D (mm)
Dimension E(mm)
Dimension F (mm)
Dimension G (mm)
Dimension H (mm)
Material thickness (mm)
Weight kg/PCE
Meka’s product range is available in friendly and ready-to-be-used 2D-, 3D-, and Revit models.
Please contact technicalsupport@meka.eu to receive:
- 2D model of the product in DWG format
- 3D model of the product in STP format
- Autodesk™ Revit model
For your need to work on product models without a separate download, please request access to the Aveva™ E3D Design software.
Product image for illustration purposes only. Actual products may vary.
