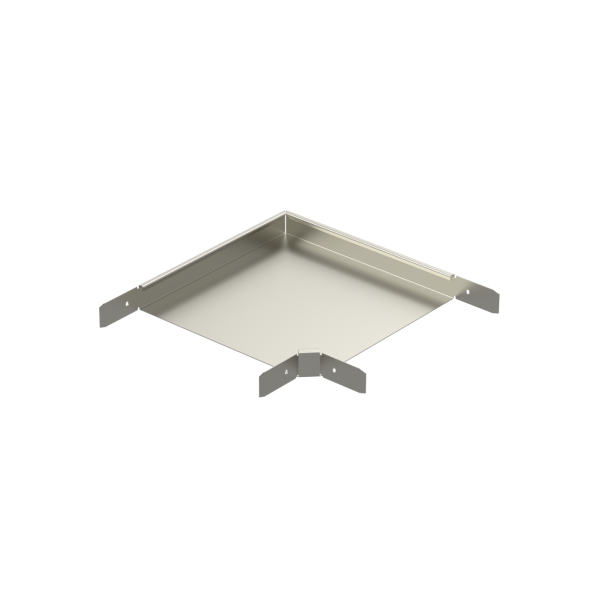

RS90-40-600 PG
Corner piece
Categories RS90 height=40mm[+]
Corner pieces RS90 are used to make a 90° angles for cable trays KRA and KRB. Jointing of RS90 corners to cable trays is fast and easy, because corners have joint slats already at place.
Product set includes bolts and nuts for fastening.
Product Attributes
Dimension Data
Video
Product Attributes
Product Name
RS90-40-600 PG
SKU
1431316
Color
Grey
Material
Steel
Surface Finish
Manufactured of hot-dip galvanized steel in accordance with standard EN 10346
GTIN Code
6438377009847
Corrosion Category
C1-C2
Fire Resistance
Loading Capacity kg
Sales Unit
PCE
Packing Size
2 PCE
Carbon Footprint kg/PCE
11.418
Stock Status
Not in Stock
Dimension Data
Length (mm)
698
Width (mm)
698
Height (mm)
40
Dimension L (mm)
Dimension A (mm)
598
Dimension B (mm)
Dimension C (mm)
Dimension D (mm)
Dimension E(mm)
Dimension F (mm)
Dimension G (mm)
Dimension H (mm)
40
Material thickness (mm)
Weight kg/PCE
4.46
