RMK-60-200 10 XPG

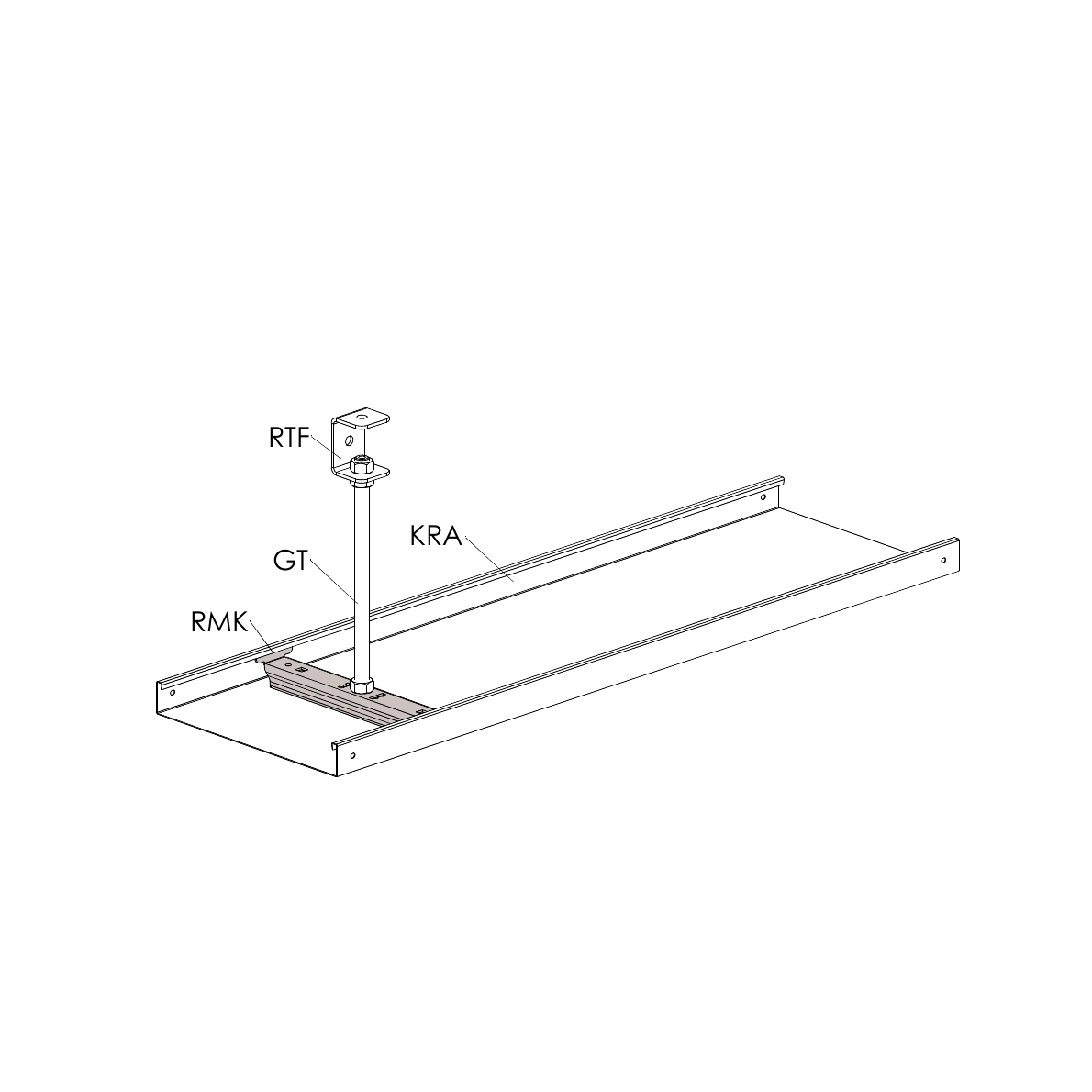

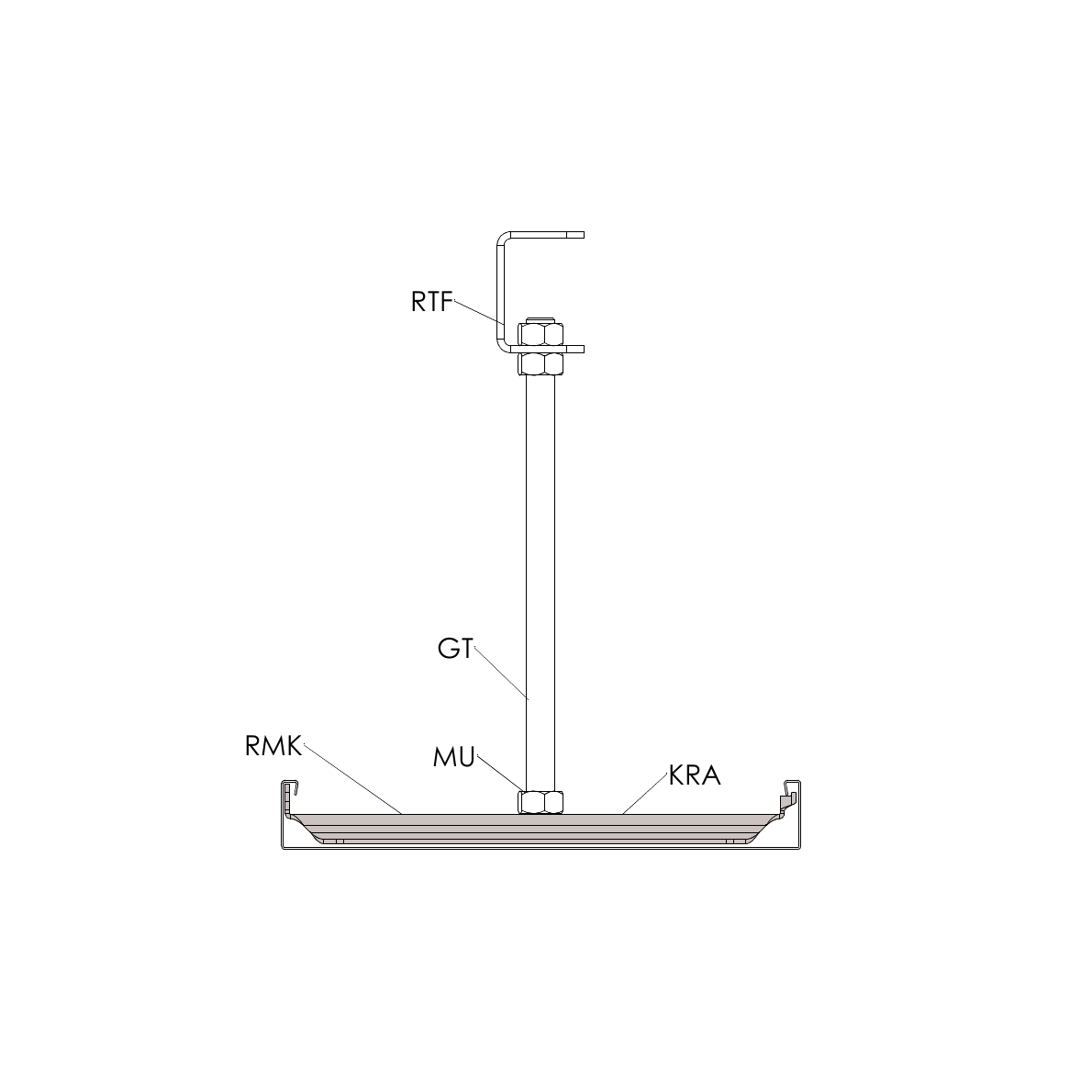

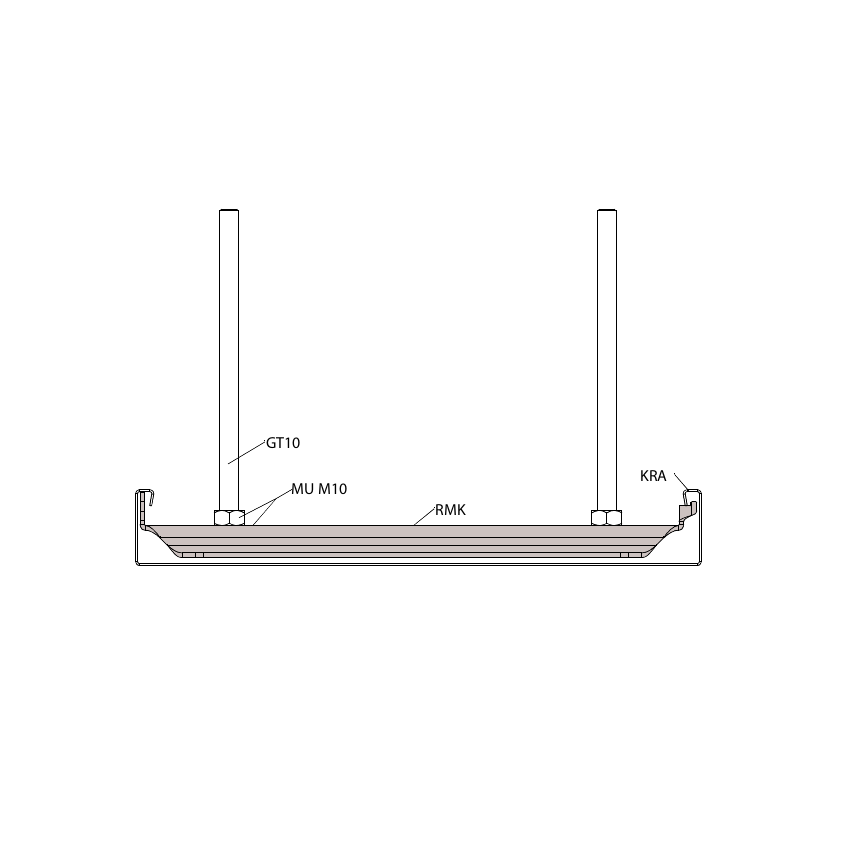

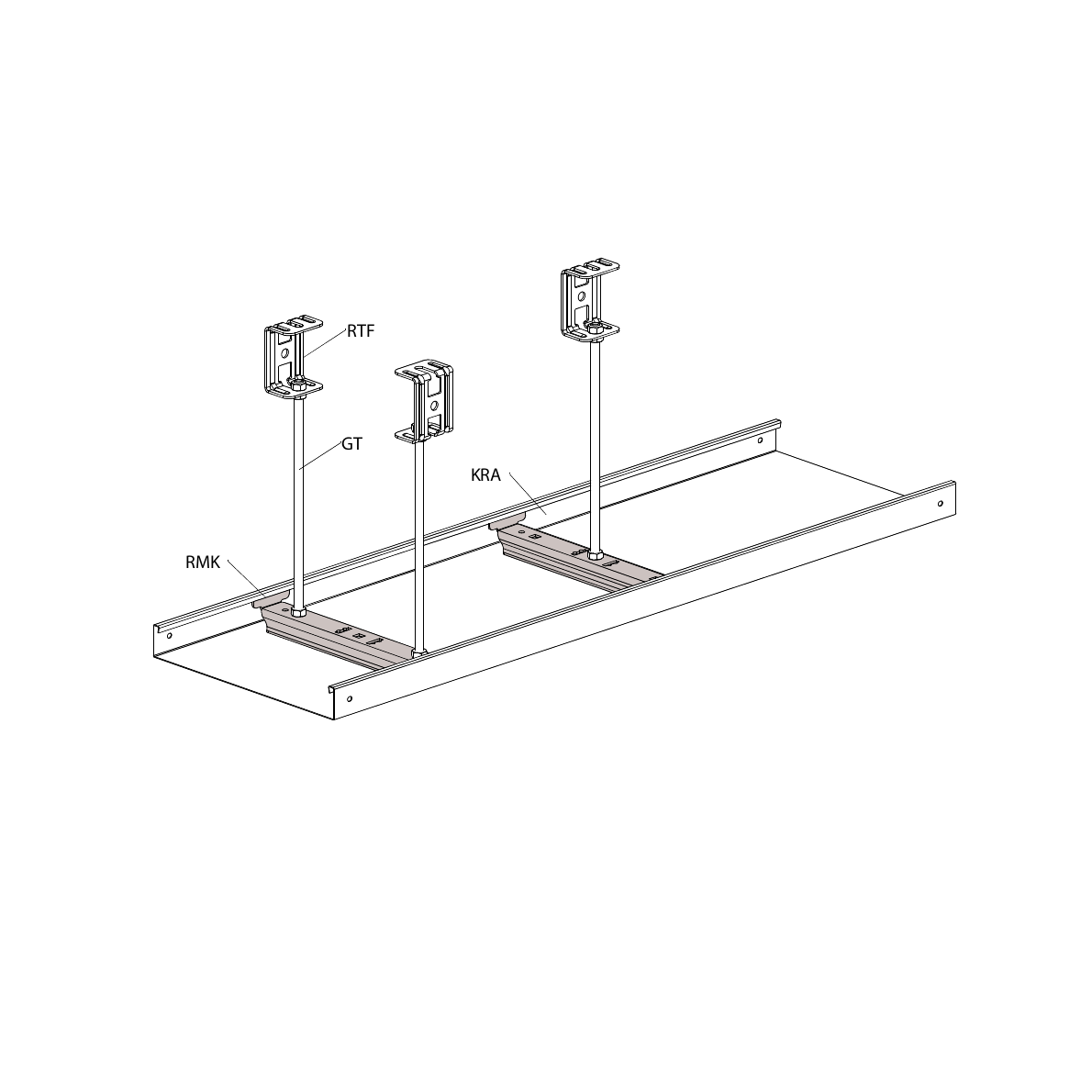

Intermediate supports RMK are used for supporting KR-type cable trays to ceiling by using threaded rods GT (one or two) or mounting rails PS. Fastening with two threaded rods (so-called gate support) is recommended for asymmetrical load of cables as well as for cable trays 400 mm and wider, especially when 8 mm threaded rods are used for hanging.

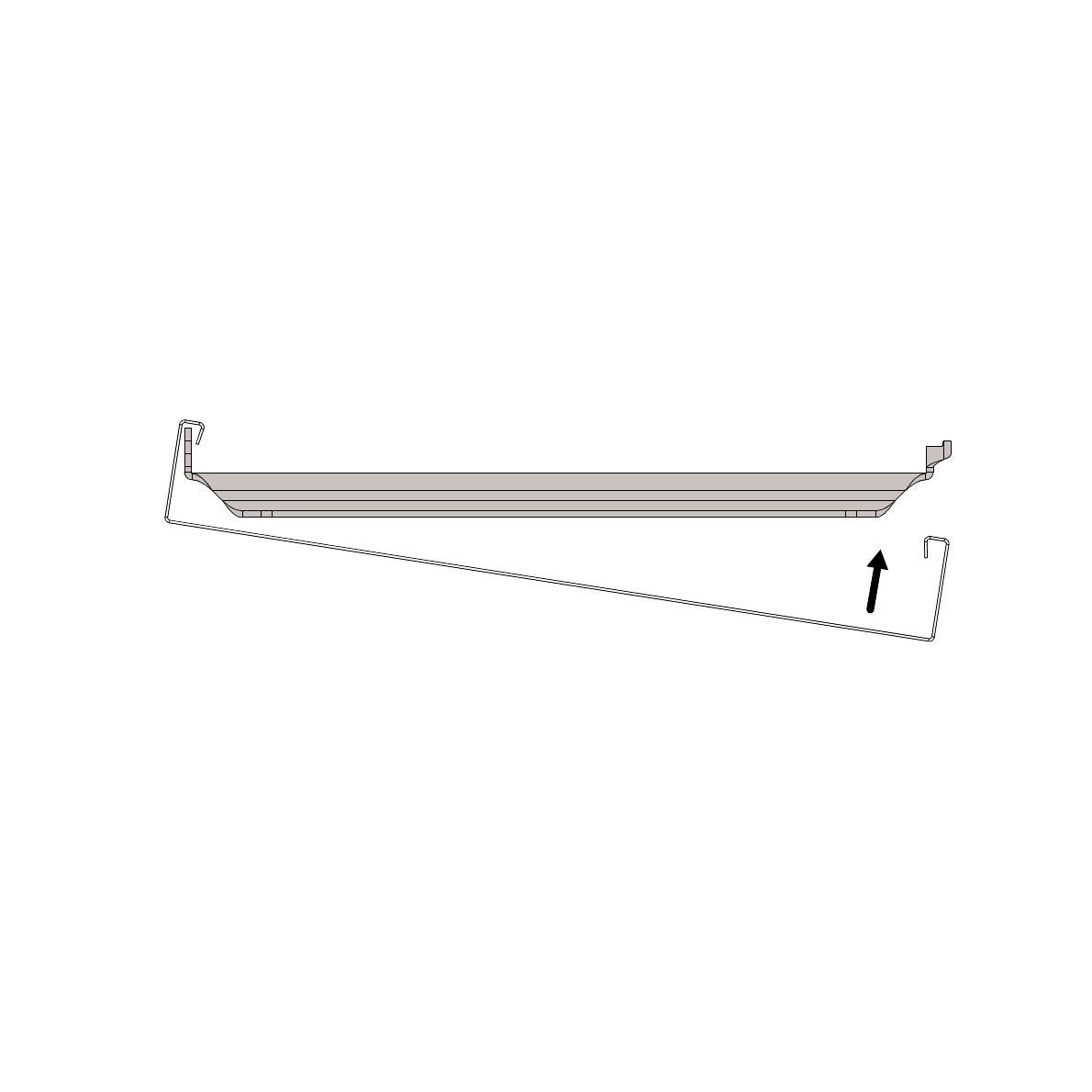

Supports RMK are placed inside of cable trays that allow a good-looking installation at places where the design is important.
Loading Capacity kg
Length (mm)
Width (mm)
Height (mm)
Dimension A (mm)
Dimension B (mm)
Dimension C (mm)
Dimension H (mm)
Material thickness (mm)
Weight kg/PCE
Meka’s(*) product range is available in friendly and ready-to-be-used 2D-, 3D-, and Revit models.
Please contact technicalsupport@meka.eu to receive:
- 2D model of the product in DWG format
- 3D model of the product in STP format
- Autodesk™ Revit model
For your need to work on product models without a separate download, please request access to the Aveva™ E3D Design software.
(*)Not avaible for Unipro lighting tracks and adapters.
Product image for illustration purposes only. Actual products may vary.
