KS100 KK PG

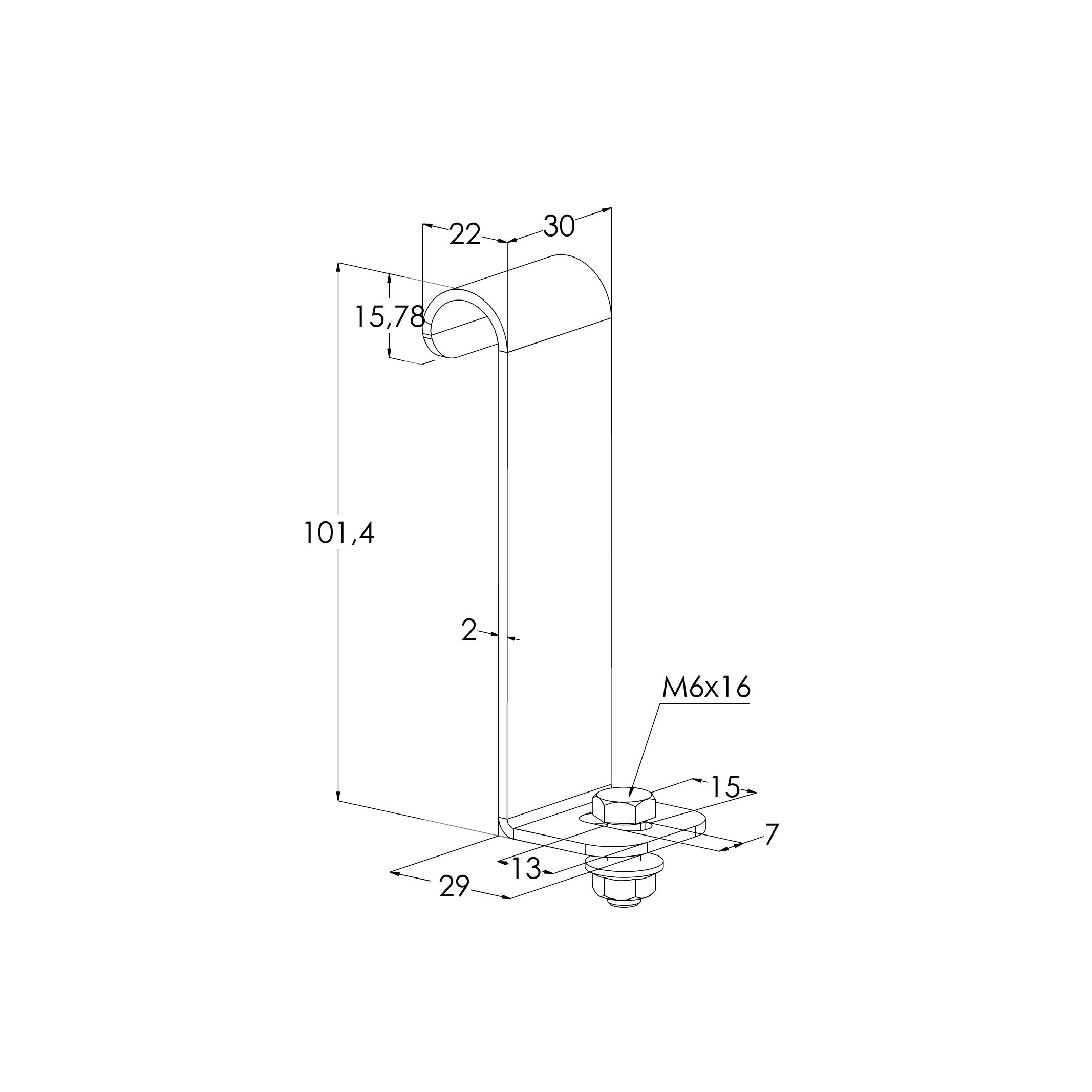

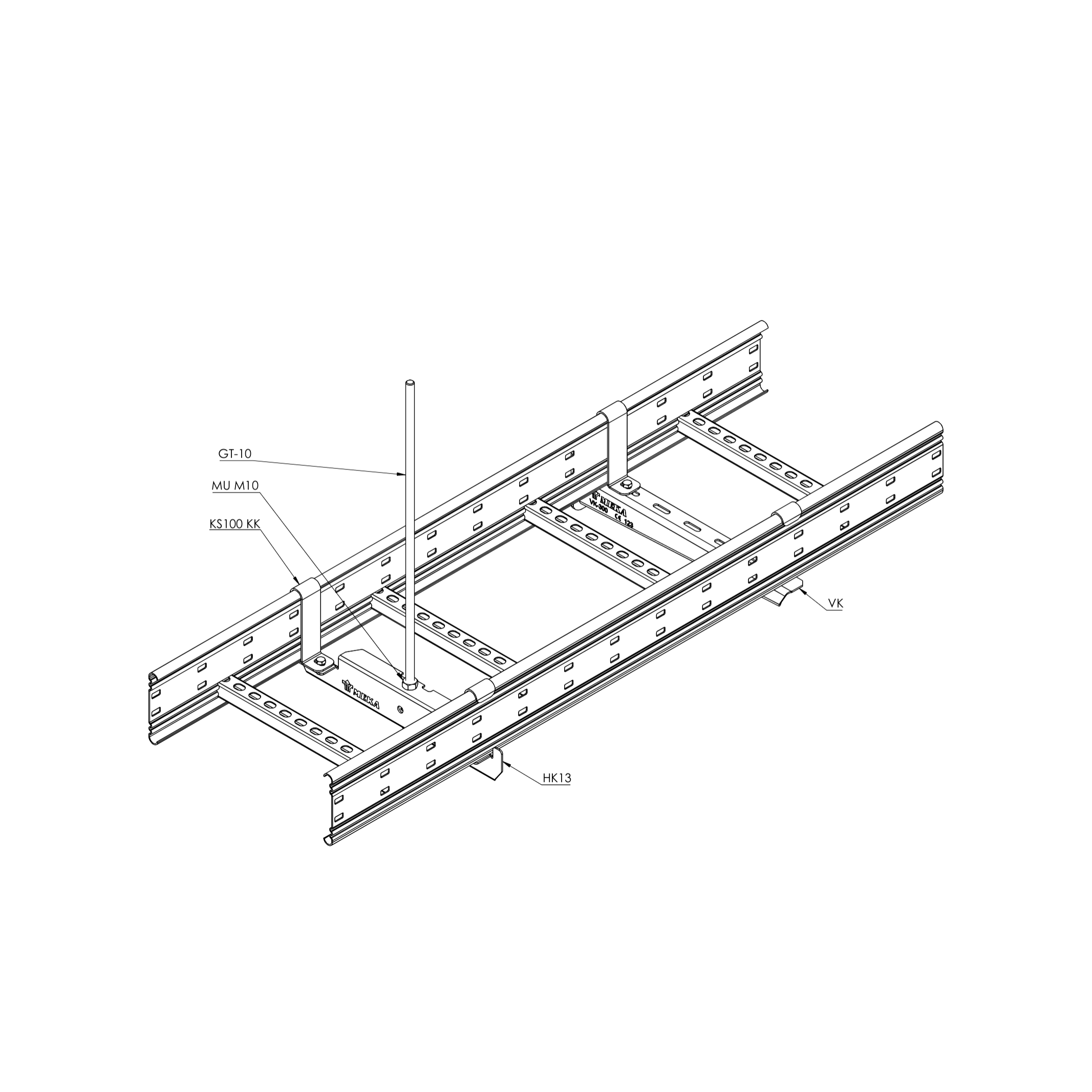

Brackets KS100 KK are used to fasten KS100-type cable ladders to intermediate, gate and wall supports (excluding MK and VKI). Recommended is to use two brackets per support that ensures the stability of cable ladders even under heavier loads and in cases when cables are needed to ran along cable ladders.
Product set includes M6x16 bolt and a M6 nut for fixing brackets to supports.
Loading Capacity kg
Length (mm)
Width (mm)
Height (mm)
Dimension L (mm)
Dimension A (mm)
Dimension B (mm)
Dimension C (mm)
Dimension D (mm)
Dimension E(mm)
Dimension F (mm)
Dimension G (mm)
Dimension H (mm)
Material thickness (mm)
Weight kg/PCE
Meka’s product range is available in friendly and ready-to-be-used 2D-, 3D-, and Revit models.
Please contact technicalsupport@meka.eu to receive:
- 2D model of the product in DWG format
- 3D model of the product in STP format
- Autodesk™ Revit model
For your need to work on product models without a separate download, please request access to the Aveva™ E3D Design software.
Product image for illustration purposes only. Actual products may vary.
