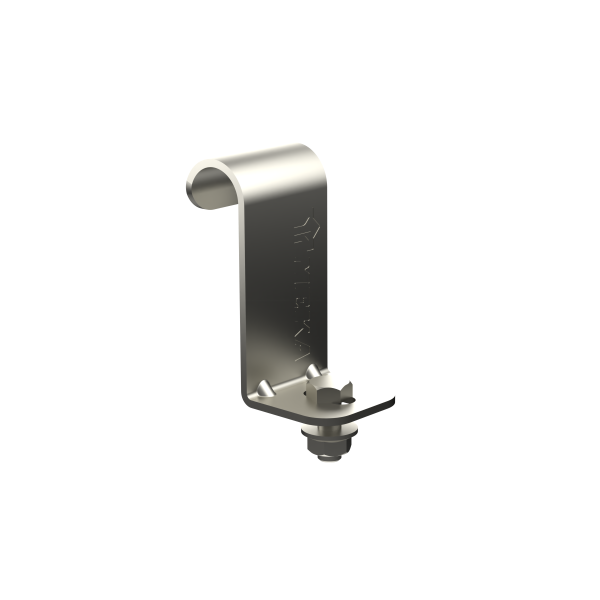

KK XPG

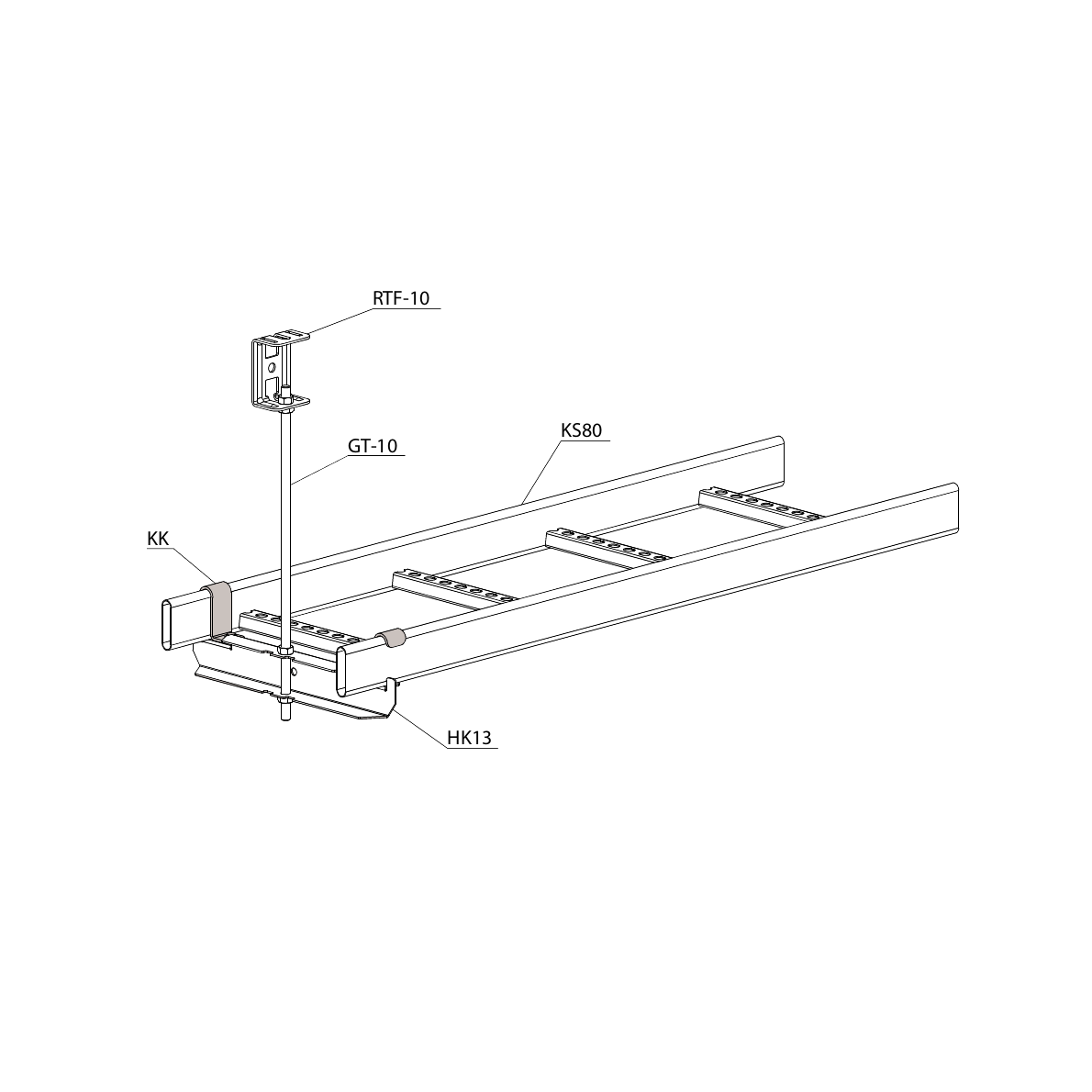

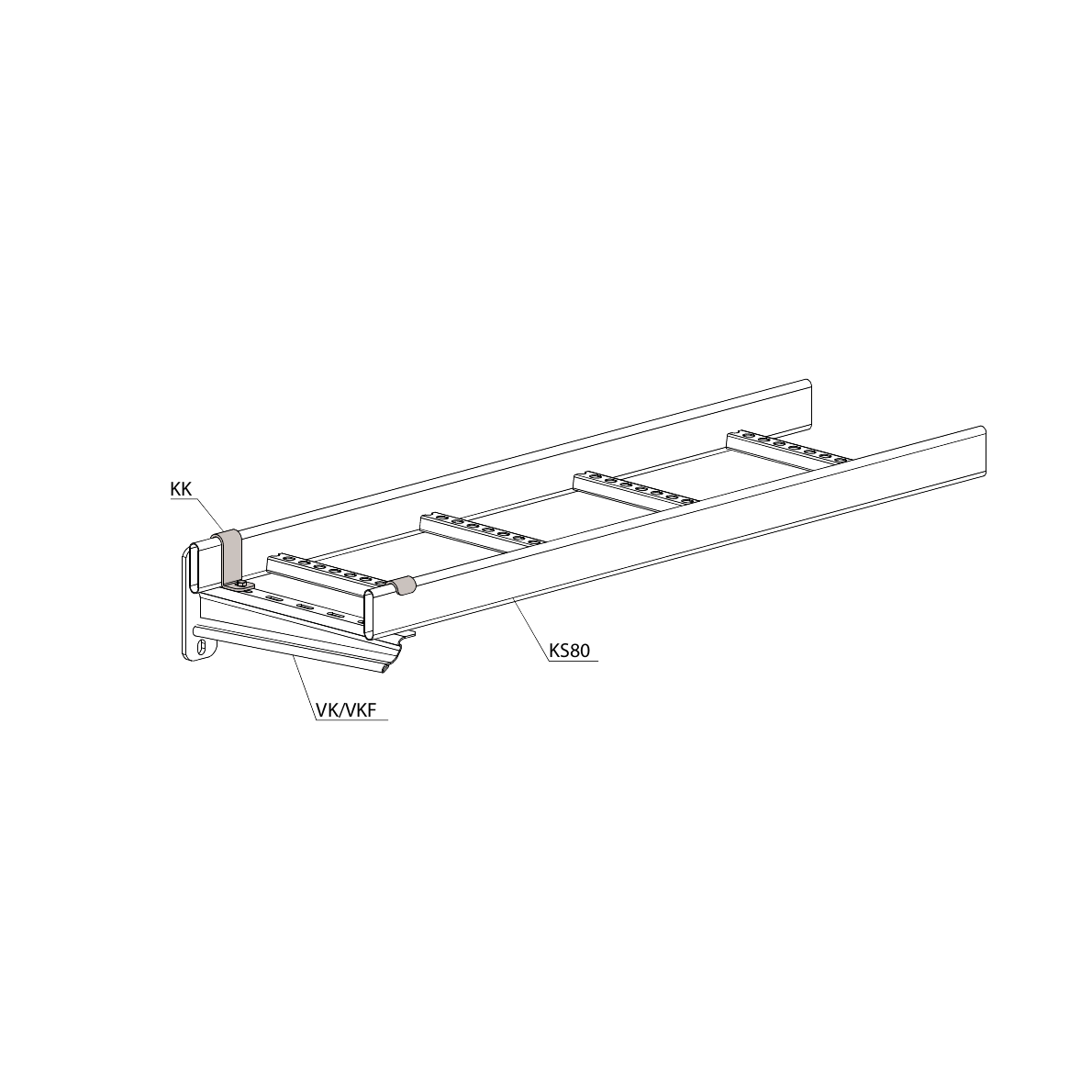

Brackets KK are used to fasten KS20-, KS60- and KS80-type cable ladders to intermediate supports HK13, gate supports PRT and TPK and wall supports VK, VKF and VKZ. Recommended is to use two brackets per support that ensures the stability of cable ladders even under heavier loads and in cases when cables are needed to ran along cable ladders.

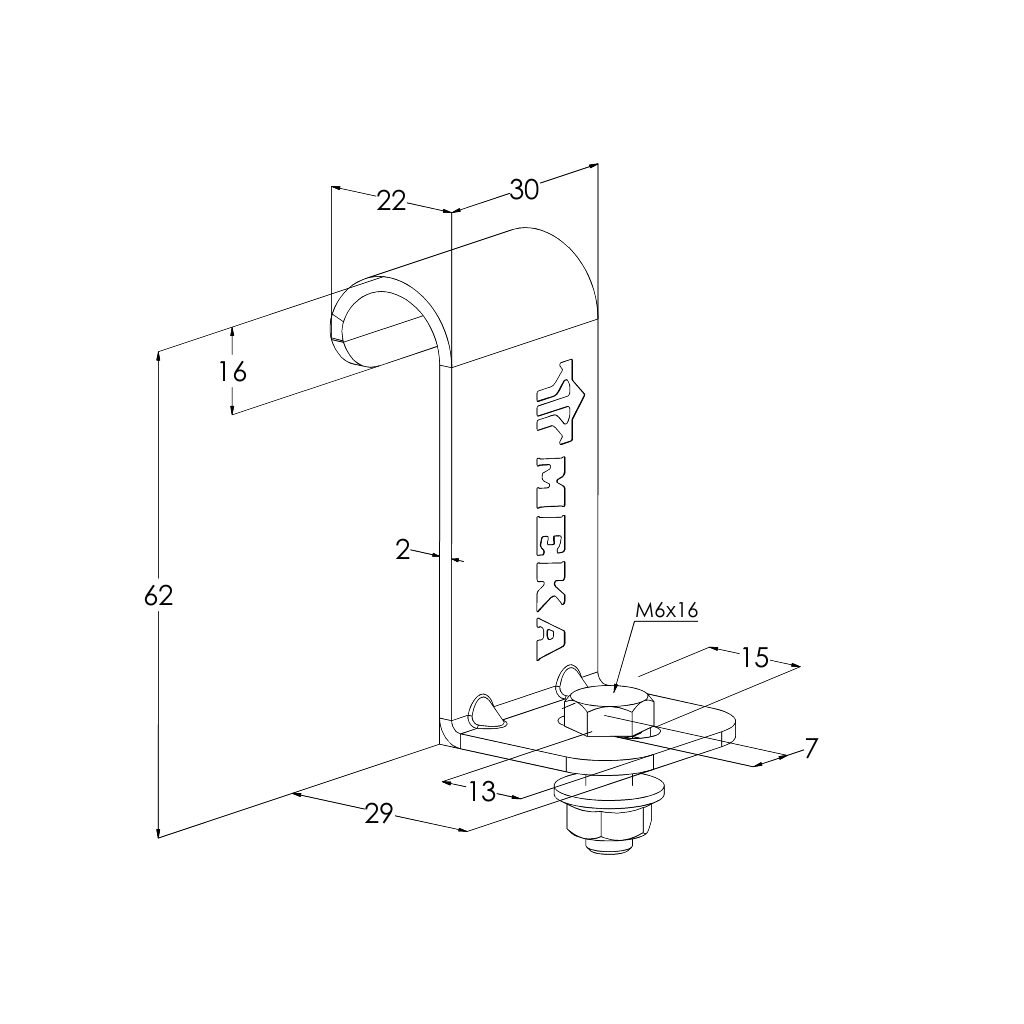

Product set includes bolt M6x16 and nut M6 for fixing brackets to supports.
Loading Capacity kg
Length (mm)
Width (mm)
Height (mm)
Dimension L (mm)
Dimension A (mm)
Dimension B (mm)
Dimension C (mm)
Dimension D (mm)
Dimension E(mm)
Dimension F (mm)
Dimension G (mm)
Dimension H (mm)
Material thickness (mm)
Weight kg/PCE
Meka’s(*) product range is available in friendly and ready-to-be-used 2D-, 3D-, and Revit models.
Please contact technicalsupport@meka.eu to receive:
- 2D model of the product in DWG format
- 3D model of the product in STP format
- Autodesk™ Revit model
For your need to work on product models without a separate download, please request access to the Aveva™ E3D Design software.
(*)Not avaible for Unipro lighting tracks and adapters.
Product image for illustration purposes only. Actual products may vary.
