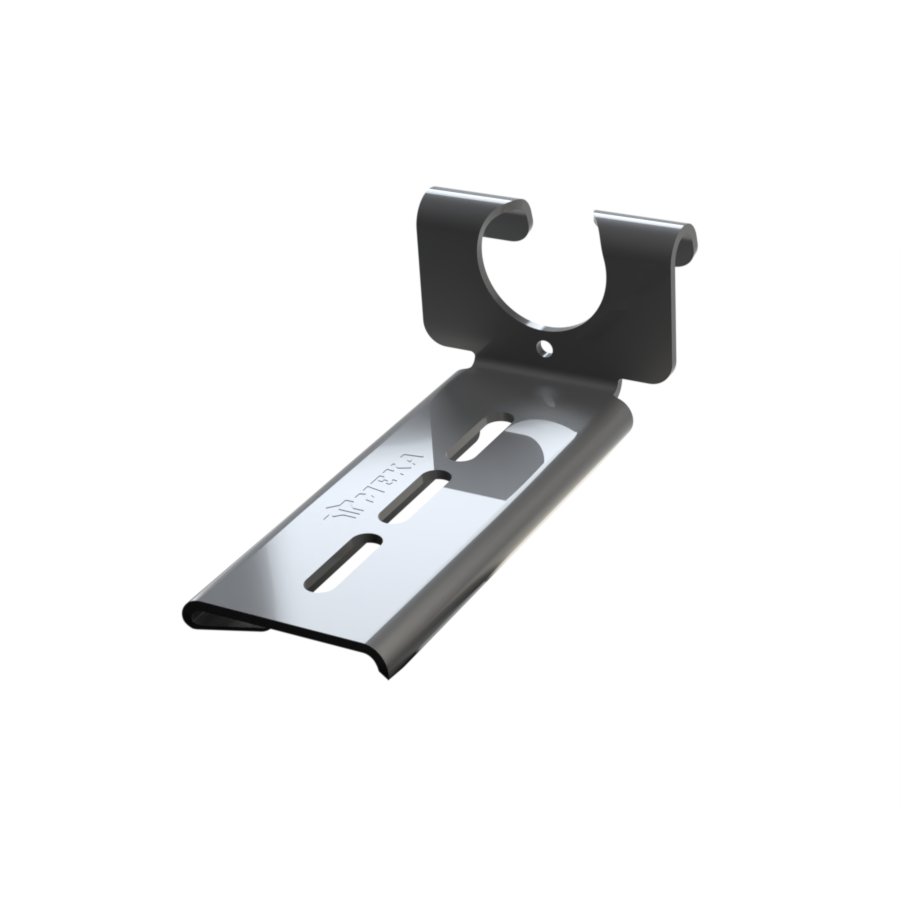

MEK T PG
T-branch brackets MEK T are used to make simple T- and X-junctions and corners from the side of MEK-type lighting support rails. After installation edges of rails stay at the same level and brackets are practically invisible.
Product set includes bolt and nut for fixing T-branch bracket into rail’s dovetail groove.
Loading Capacity kg
Length (mm)
Width (mm)
Height (mm)
Dimension L (mm)
Dimension A (mm)
Dimension B (mm)
Dimension C (mm)
Dimension D (mm)
Dimension E(mm)
Dimension F (mm)
Dimension G (mm)
Dimension H (mm)
Material thickness (mm)
Weight kg/PCE
Meka’s product range is available in friendly and ready-to-be-used 2D-, 3D-, and Revit models.
Please contact technicalsupport@meka.eu to receive:
- 2D model of the product in DWG format
- 3D model of the product in STP format
- Autodesk™ Revit model
For your need to work on product models without a separate download, please request access to the Aveva™ E3D Design software.
Product image for illustration purposes only. Actual products may vary.
