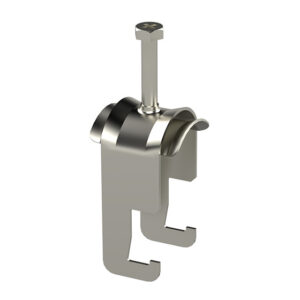

CCA cable clamp available with XPG® coating
The familiar CCA cable clamp for cables is now available with a durable and environmentally friendly C4-class XPG® coating.
The CCA cable clamp is an easy solution for securely fastening cables to ladder tray rungs and mounting rails. The cable clamp ensures neat and firm cable management, which simplifies installation work and enhances overall safety and reliability. The MEKA® CCA cable clamp is available in 12 sizes for cables ranging from 5 mm to 82 mm in diameter.
Note! Check the maximum permissible tightening torque for the cable clamp in the table below.
CCA-12 – max. 1 Nm
CCA-14 – max. 1 Nm
CCA-18 – max. 1 Nm
CCA-22 – max. 1,5 Nm
CCA-26 – max. 1,5 Nm
CCA-30 – max. 1,5 Nm
CCA-34 – max. 1,5 Nm
CCA-40 – max. 2 Nm
CCA-46 – max. 2 Nm
CCA-52 – max. 2 Nm
CCA-60 – max. 3 Nm
CCA-82 – max. 3 Nm
The XPG® coating is specially designed for extreme industrial environments. In addition to cathodic protection, its corrosion resistance also relies on mechanical shielding. XPG® offers corrosion protection in alkaline and acidic environments comparable to other zinc-based coatings. In chloride- and ammonia-rich environments, XPG® provides superior corrosion resistance compared to traditional zinc coatings. More information about the coating.
