RTF-S-10 XPG

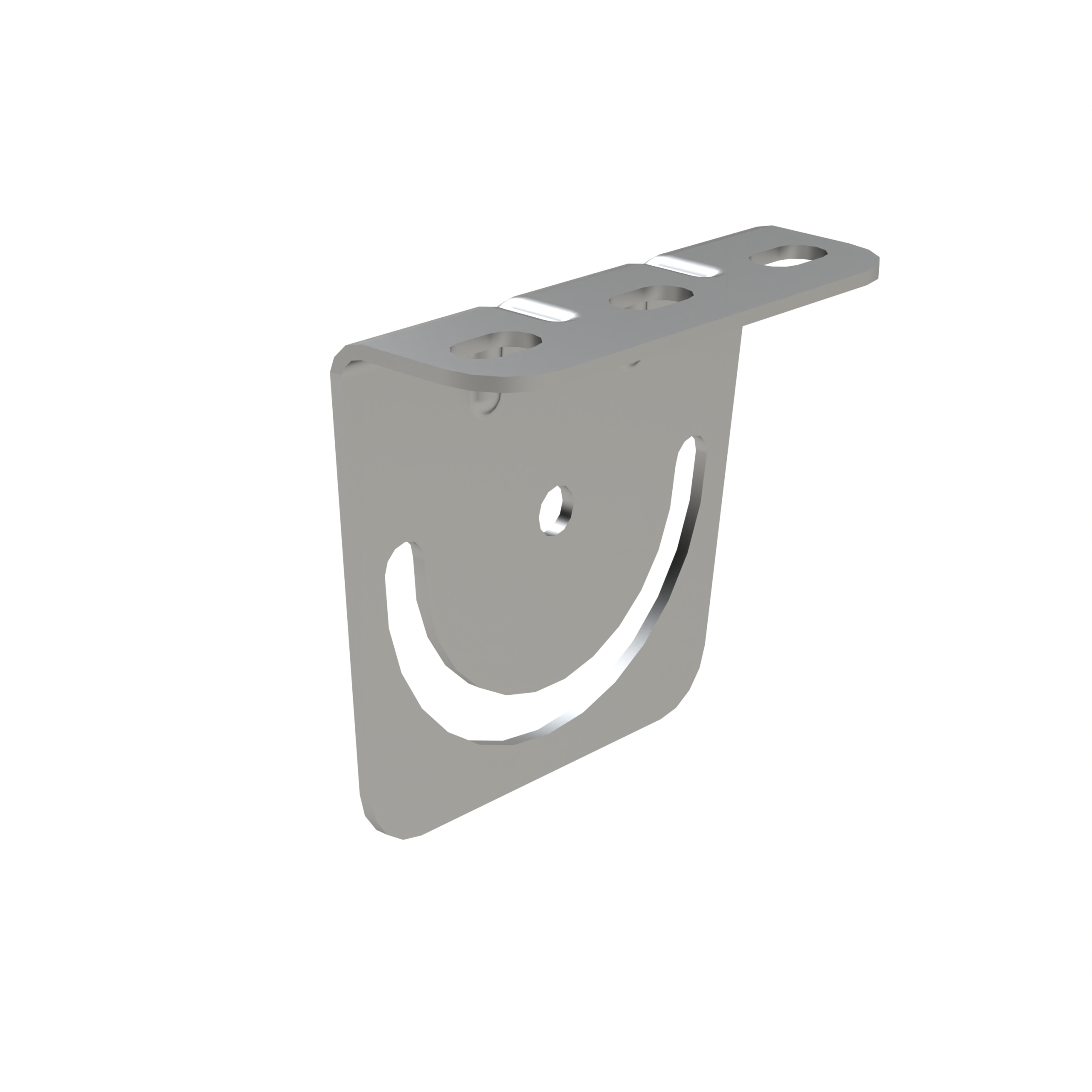

The support for the legs of the ground-mounted solar panel system, also used as a roof mount.

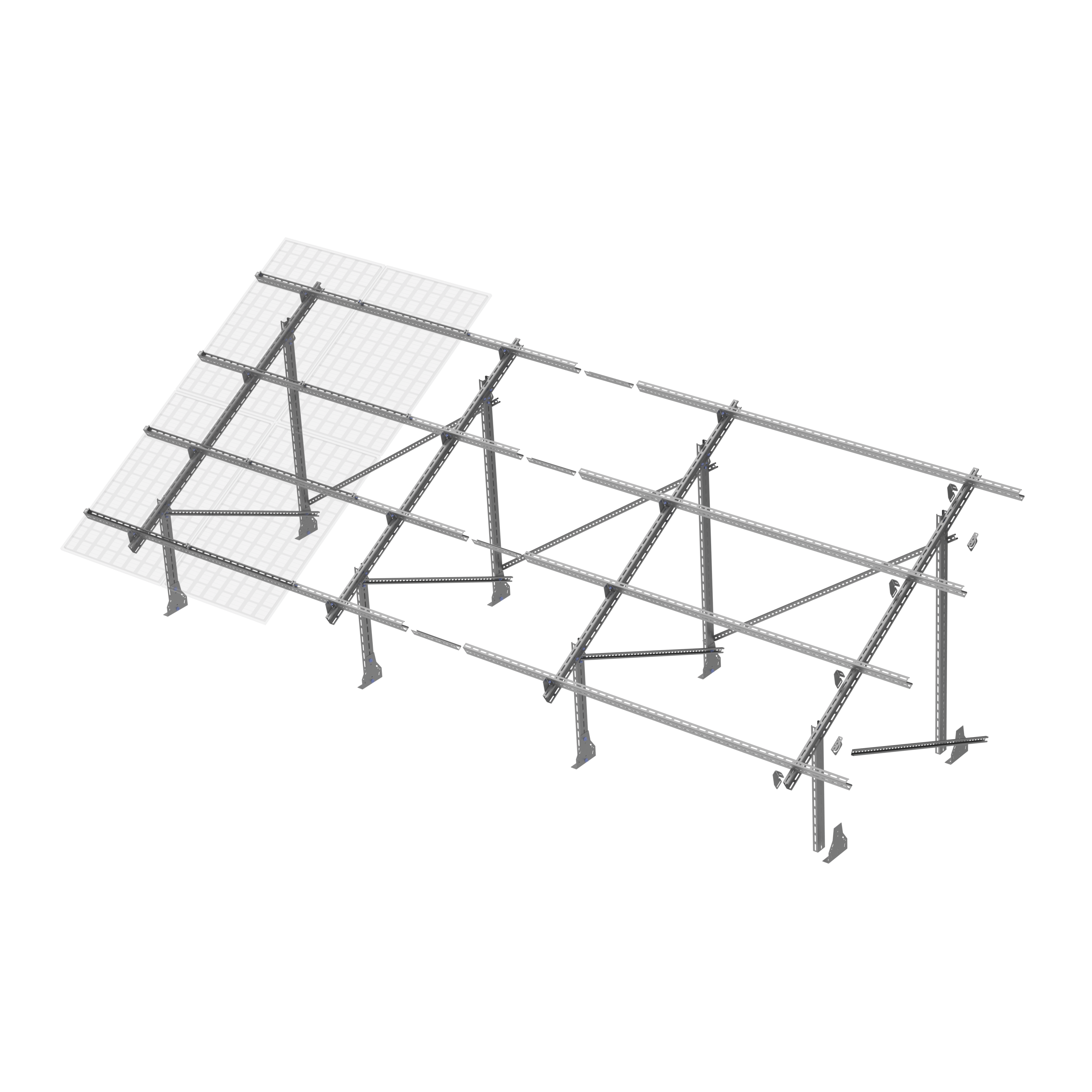

In the ground-mounted system, the RTF-S-10 is attached to the end of the C-profile acting as a leg to support the angled C-profile.
In roof installation, the RTF-S-10 roof mount is attached to the AS or FP mounting rail on a sloped roof. The angle of the mounting rail is adjusted according to the roof slope. Attached with an M10 bolt.
Loading Capacity kg
Length (mm)
Width (mm)
Height (mm)
Dimension L (mm)
Dimension A (mm)
Dimension B (mm)
Dimension C (mm)
Dimension D (mm)
Dimension E(mm)
Dimension F (mm)
Dimension G (mm)
Dimension H (mm)
Material thickness (mm)
Weight kg/PCE
Meka’s(*) product range is available in friendly and ready-to-be-used 2D-, 3D-, and Revit models.
Please contact technicalsupport@meka.eu to receive:
- 2D model of the product in DWG format
- 3D model of the product in STP format
- Autodesk™ Revit model
For your need to work on product models without a separate download, please request access to the Aveva™ E3D Design software.
(*)Not avaible for Unipro lighting tracks and adapters.
Product image for illustration purposes only. Actual products may vary.
