RT-90-100 XPG
T-piece
Categories RT height=90mm[+]
Product Name
RT-90-100 XPG
SKU
1478300
Color
Grey
Material
Steel
Surface Finish
Manufactured of coated steel in accordance with standard EN 10346
GTIN Code
6438377139056
Corrosion Category
C1-C4
Fire Resistance
Loading Capacity kg
Sales Unit
PCE
Packing Size
1 PCE
GWP total A1-A3
2.72
GWP calculation standard
EN 15804+A2:2019 and ISO 14025
GWP declaration valid until
2029-12-21
Stock Status
Not in Stock
Length (mm)
298
Width (mm)
178
Height (mm)
90

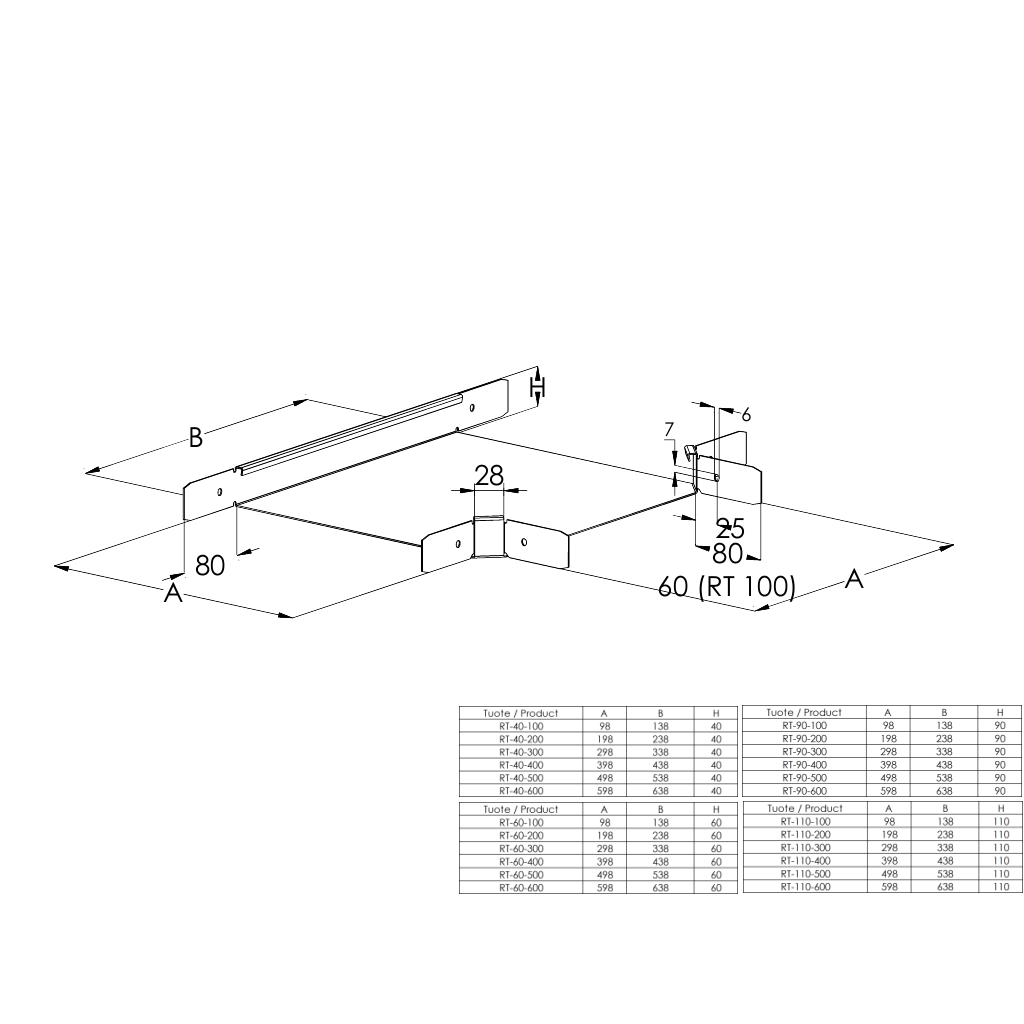

Dimension L (mm)
Dimension A (mm)
98
Dimension B (mm)
Dimension C (mm)
Dimension D (mm)
Dimension E(mm)
Dimension F (mm)
Dimension G (mm)
Dimension H (mm)
90
Material thickness (mm)
1
Weight kg/PCE
0.57
Meka’s(*) product range is available in friendly and ready-to-be-used 2D-, 3D-, and Revit models.
Please contact technicalsupport@meka.eu to receive:
- 2D model of the product in DWG format
- 3D model of the product in STP format
- Autodesk™ Revit model
For your need to work on product models without a separate download, please request access to the Aveva™ E3D Design software.
(*)Not avaible for Unipro lighting tracks and adapters.

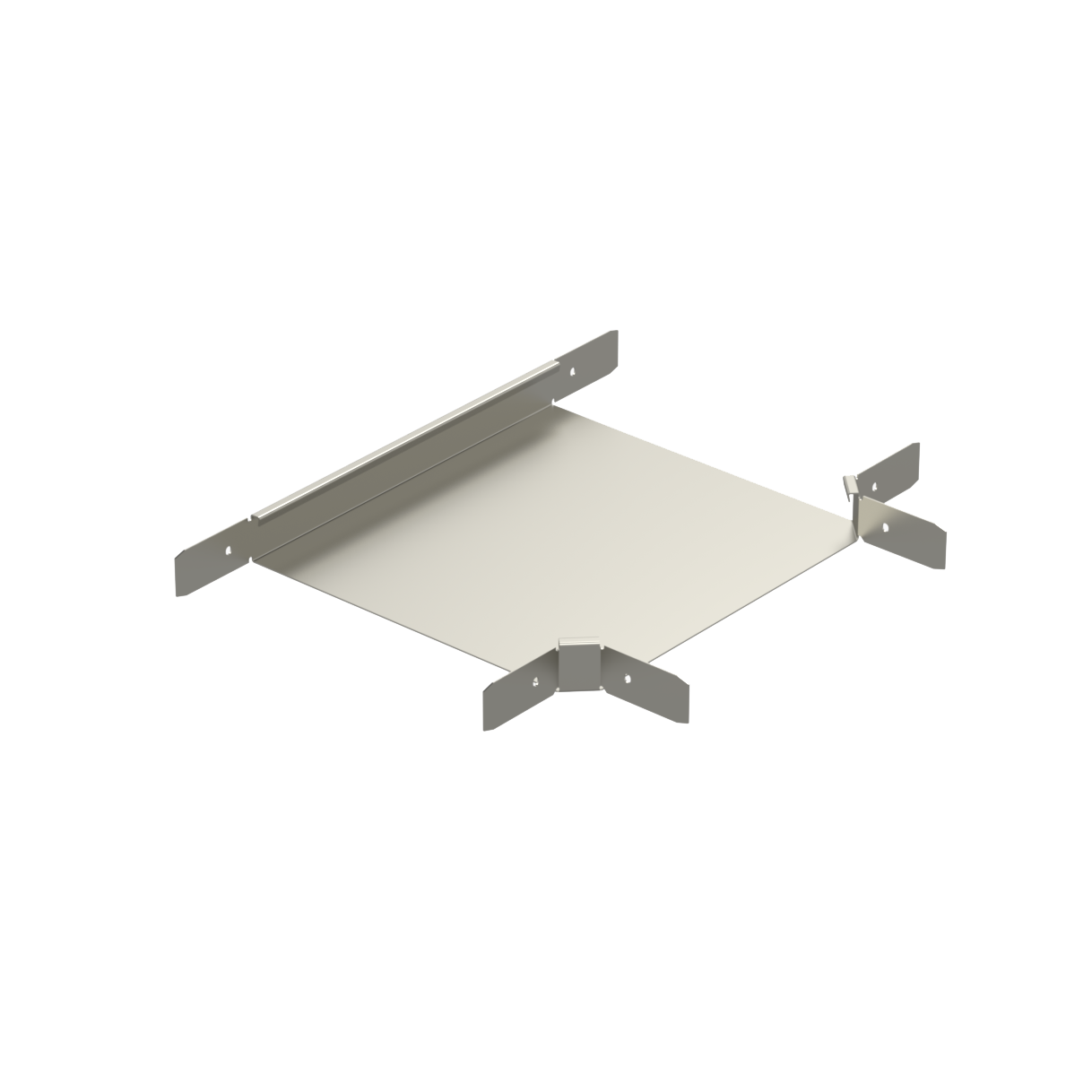

Product image for illustration purposes only. Actual products may vary.
