RS90-90-600 PG

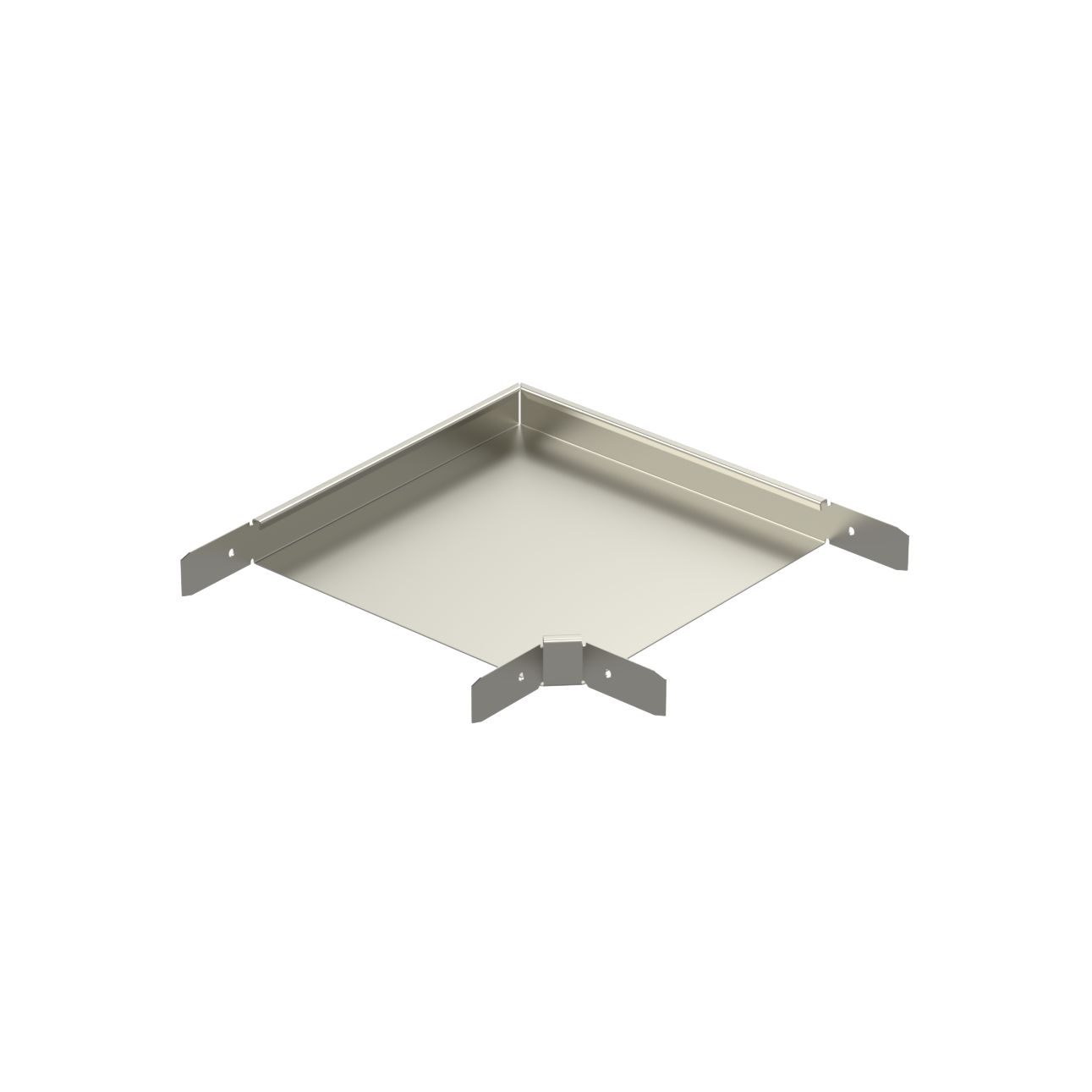

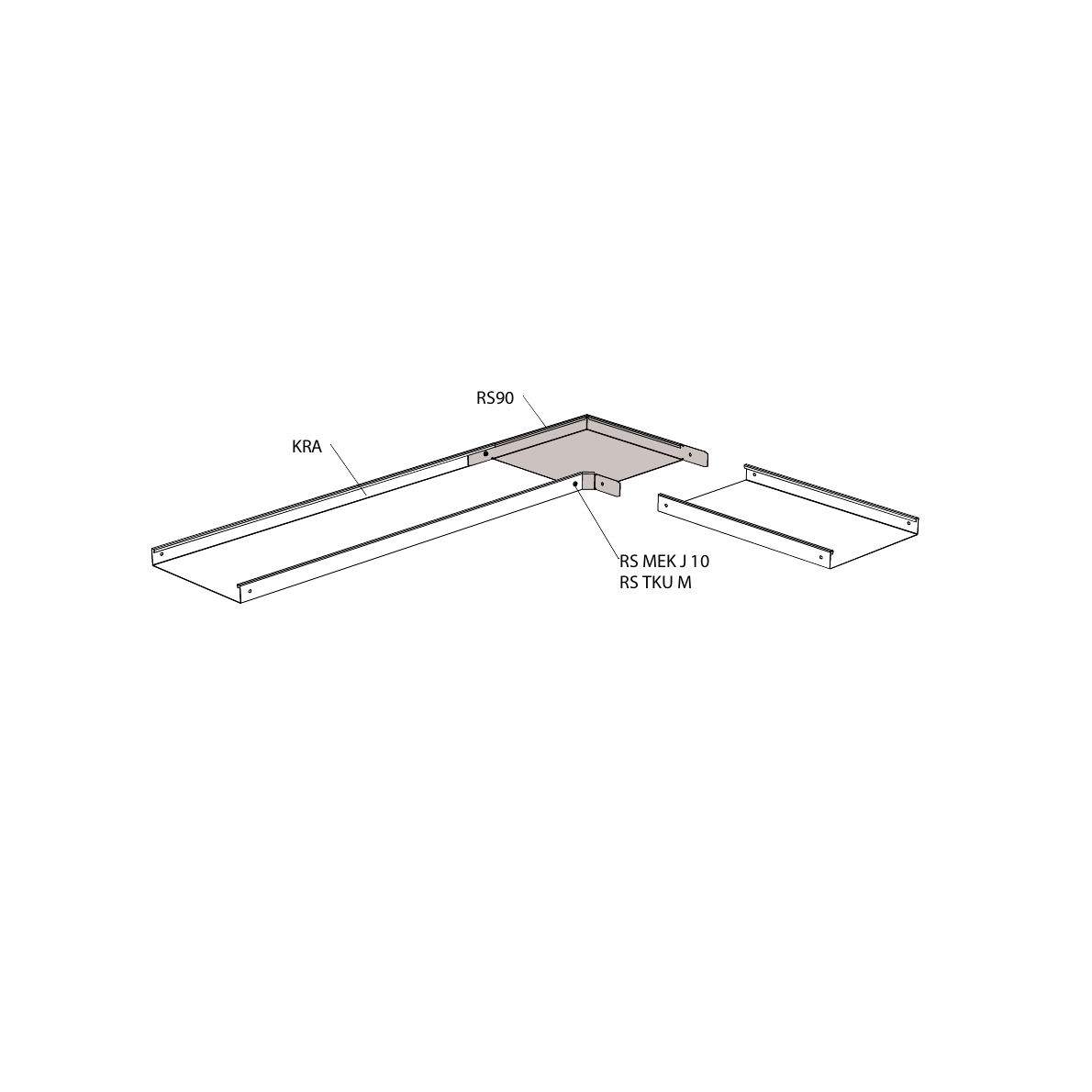

Corner pieces RS90 are used to make a 90° angles for KR-type cable trays. Jointing of RS90 corners to cable trays is fast and easy, because corners have joint slats already at place.
Product set includes bolts and nuts for fastening.
Loading Capacity kg
Length (mm)
Width (mm)
Height (mm)

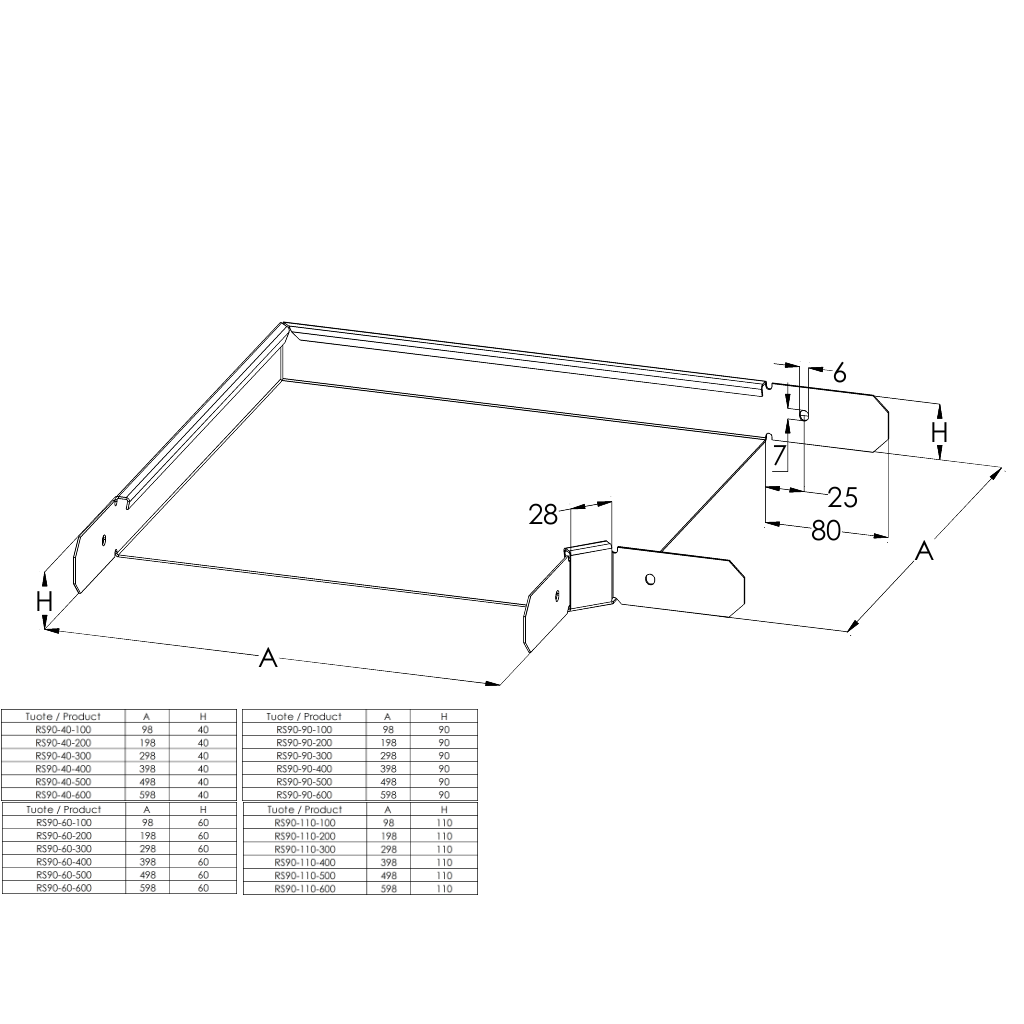

Dimension L (mm)
Dimension A (mm)
Dimension B (mm)
Dimension C (mm)
Dimension D (mm)
Dimension E(mm)
Dimension F (mm)
Dimension G (mm)
Dimension H (mm)
Material thickness (mm)
Weight kg/PCE
Meka’s(*) product range is available in friendly and ready-to-be-used 2D-, 3D-, and Revit models.
Please contact technicalsupport@meka.eu to receive:
- 2D model of the product in DWG format
- 3D model of the product in STP format
- Autodesk™ Revit model
For your need to work on product models without a separate download, please request access to the Aveva™ E3D Design software.
(*)Not avaible for Unipro lighting tracks and adapters.
Product image for illustration purposes only. Actual products may vary.
Related products
-
KRA-90-600 L=3000 PG
SKU: 1432046
Corrosion Category: C1-C2
W: 600 H: 90 L: 3000 -

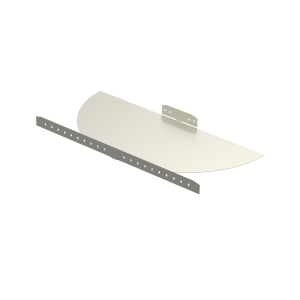

SRS-90-600 PG
SKU: 1432246
Corrosion Category: C1-C2
W: 597 H: 87 L: 1210 -

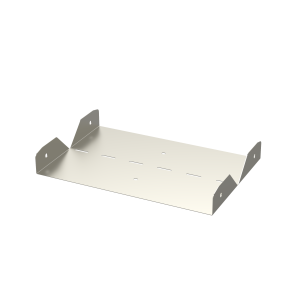

RVS-90-600 PG
