RS 8 HDG
Bolt set
Categories Nordic PV System GS3, Nordic PV System GL3[+]

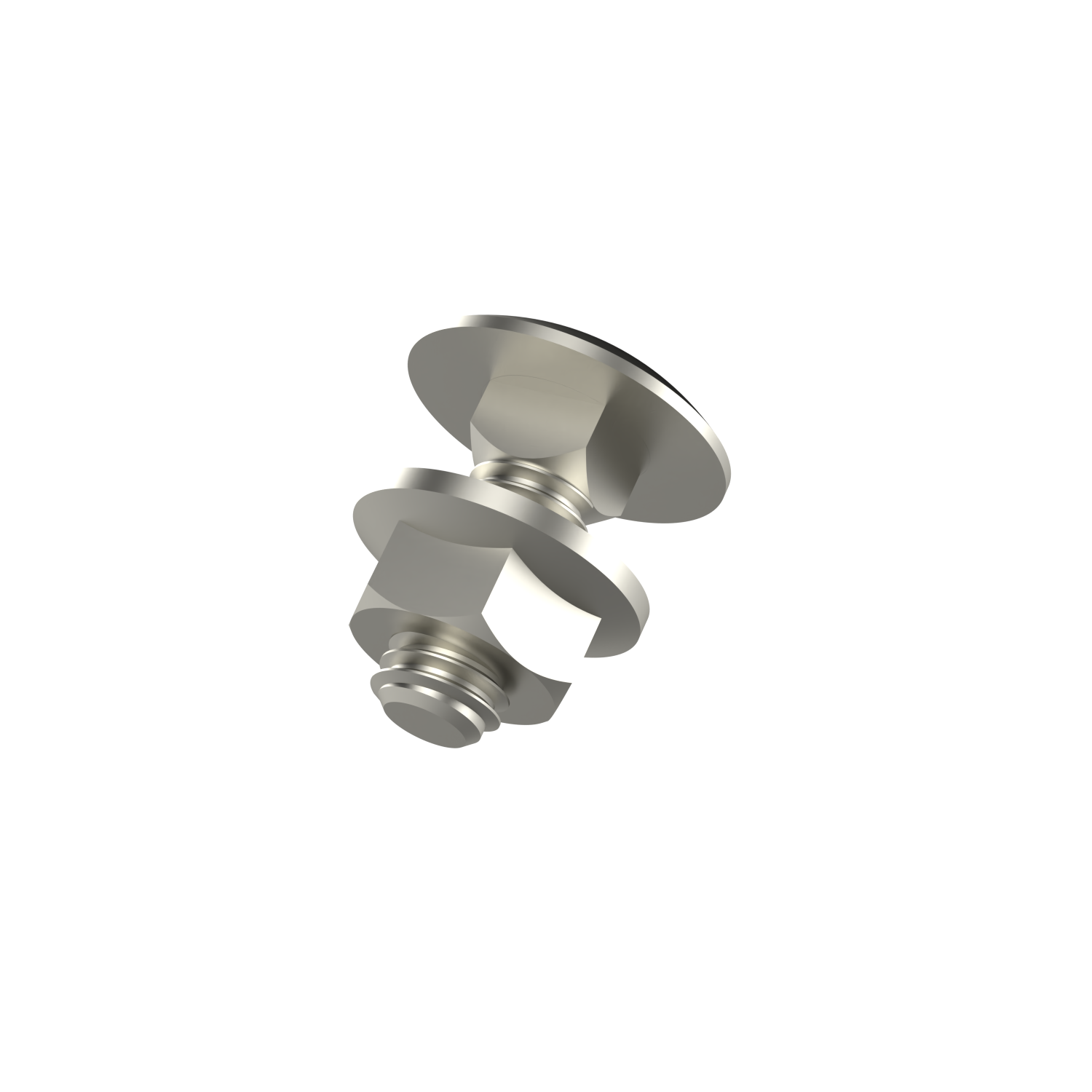

Bolt sets RS include nut and bolt and are used to connect different Meka products.
Product Attributes
Dimension Data
Video
BIM
Product Attributes
Product Name
RS 8 HDG
SKU
1449128
Color
Grey
Material
Steel
Surface Finish
Hot-dip galvanized after manufacturing in accordance with standard EN ISO 1461
GTIN Code
6438377134853
Corrosion Category
C1-C4
Fire Resistance
Loading Capacity kg
Sales Unit
PCE
Packing Size
10 PCE
Carbon Footprint kg/PCE
0.0858
Stock Status
In Stock
Dimension Data
Length (mm)
Width (mm)
Height (mm)
Dimension L (mm)
Dimension A (mm)
Dimension B (mm)
Dimension C (mm)
Dimension D (mm)
Dimension E(mm)
Dimension F (mm)
Dimension G (mm)
Dimension H (mm)
Material thickness (mm)
Weight kg/PCE
0.03
Video
BIM
Meka’s(*) product range is available in friendly and ready-to-be-used 2D-, 3D-, and Revit models.
Please contact technicalsupport@meka.eu to receive:
- 2D model of the product in DWG format
- 3D model of the product in STP format
- Autodesk™ Revit model
For your need to work on product models without a separate download, please request access to the Aveva™ E3D Design software.
(*)Not avaible for Unipro lighting tracks and adapters.
Product image for illustration purposes only. Actual products may vary.
