KS100 X-600 R=600 HDG
X-piece
Categories KS100 X X-pieces[+]
X-pieces KS100 X are used to make X-junctions for KS100-type cable ladders when the bending radius of cables or other needs require this. KS100 X inside radius is R=600 mm.

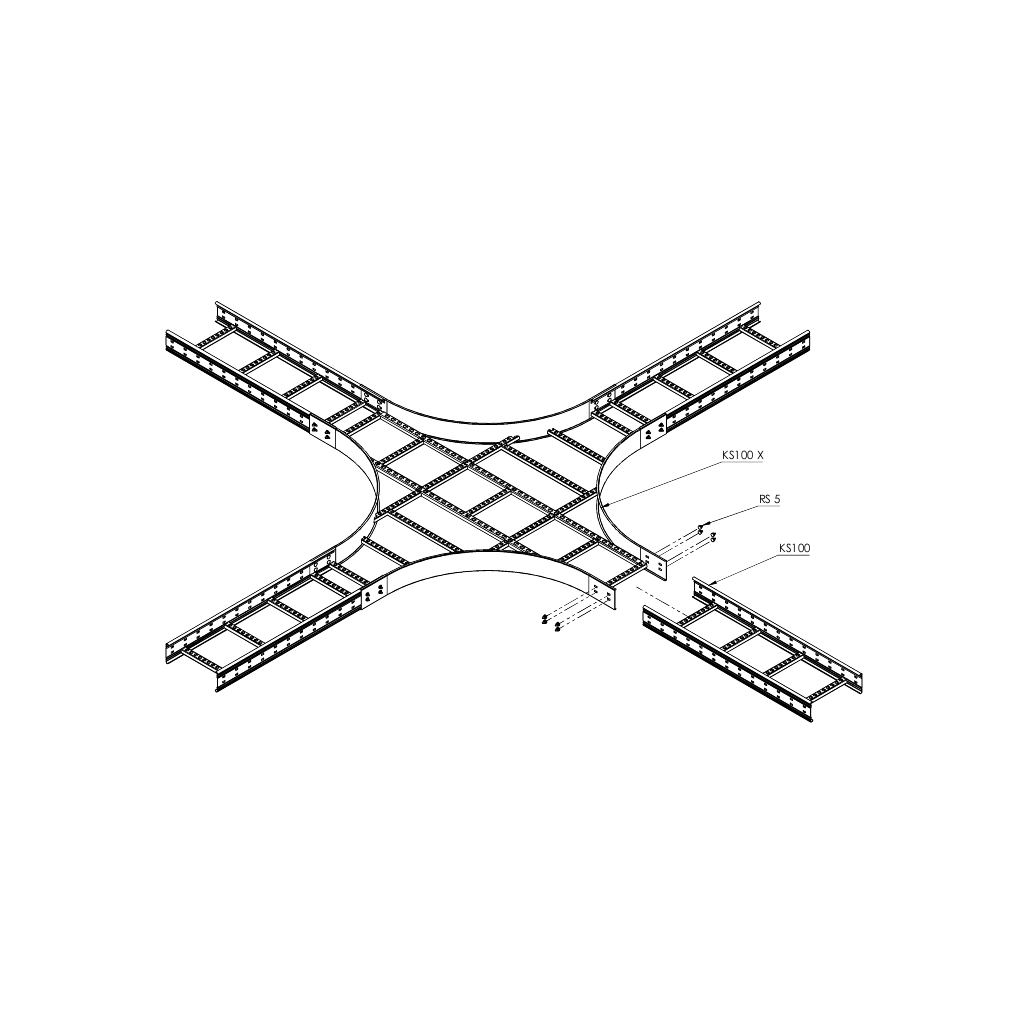

X-pieces can be connected to cable ladders by using joints KS100 J.
Product Attributes
Dimension Data
Video
BIM
Product Attributes
Product Name
KS100 X-600 R=600 HDG
SKU
1478198
Color
Grey
Material
Steel
Surface Finish
Hot-dip galvanized after manufacturing in accordance with standard EN ISO 1461
GTIN Code
6438377120733
Corrosion Category
C1-C4
Sales Unit
PCE
Packing Size
1 PCE
Stock Status
Not in Stock

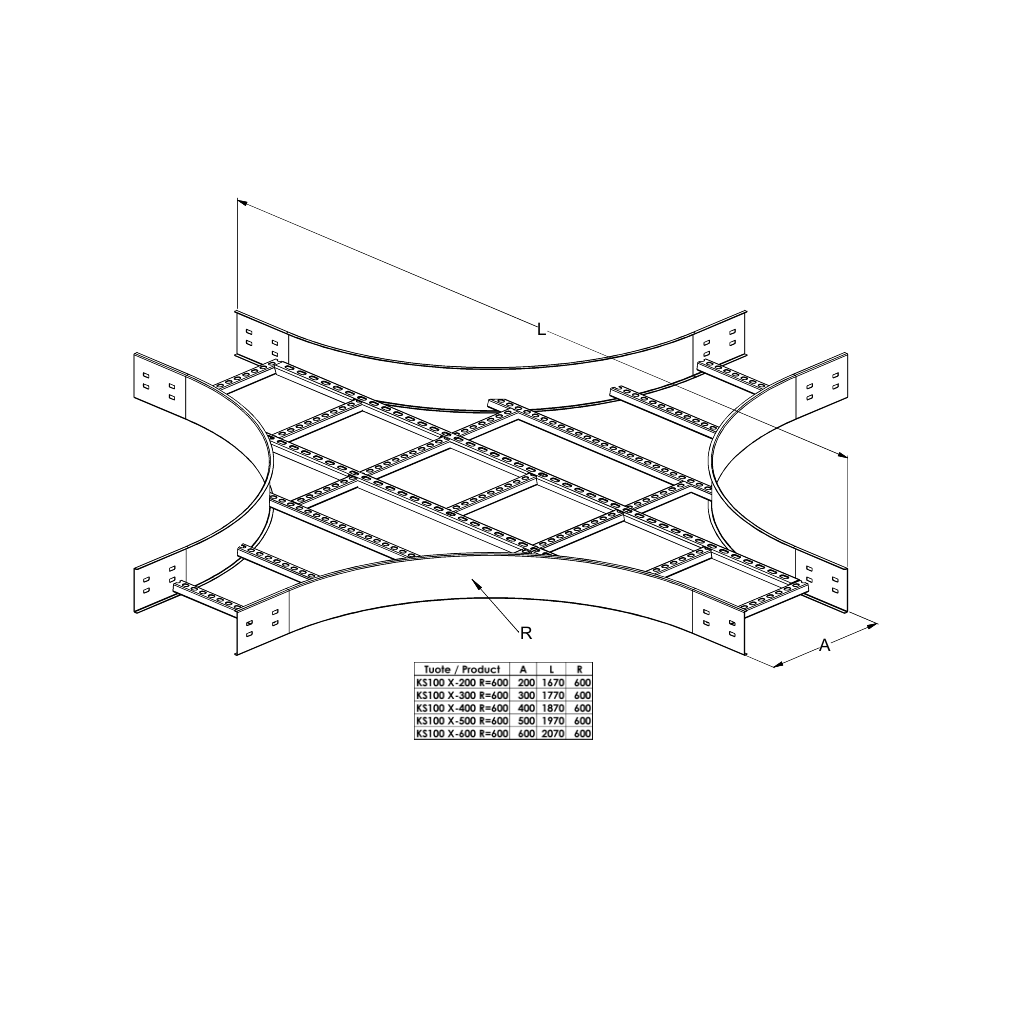

Dimension Data
Length (mm)
2070
Width (mm)
2070
Height (mm)
100
Dimension L (mm)
2070
Dimension A (mm)
600
Weight kg/PCE
16.82
Video
BIM
Meka’s(*) product range is available in friendly and ready-to-be-used 2D-, 3D-, and Revit models.
Please contact technicalsupport@meka.eu to receive:
- 2D model of the product in DWG format
- 3D model of the product in STP format
- Autodesk™ Revit model
For your need to work on product models without a separate download, please request access to the Aveva™ E3D Design software.
(*)Not avaible for Unipro lighting tracks and adapters.

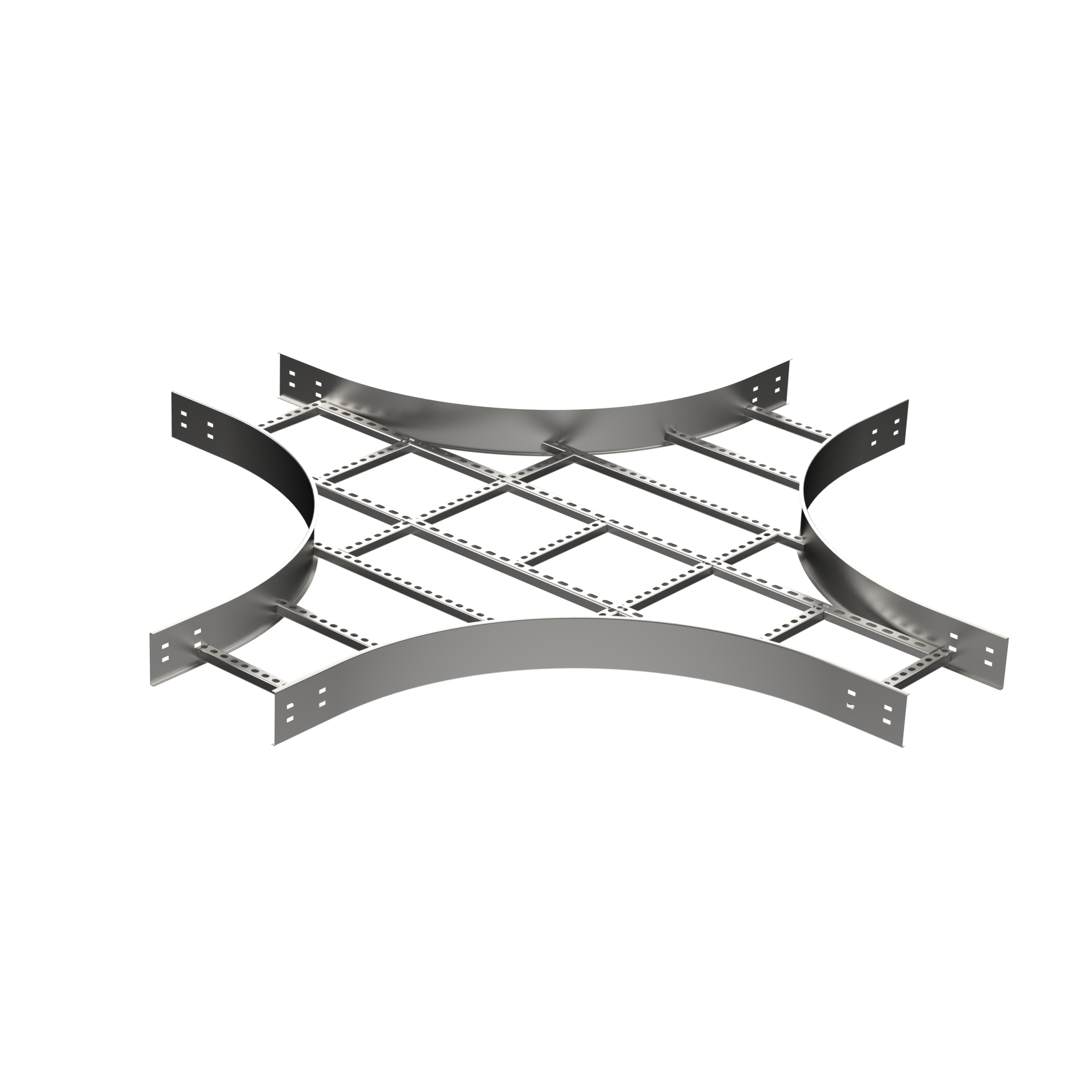

Product image for illustration purposes only. Actual products may vary.
