KS100 L-400 R=600 HDG
Cable ladders / KS100 / Corner pieces / KS100 L corner pieces
[-]

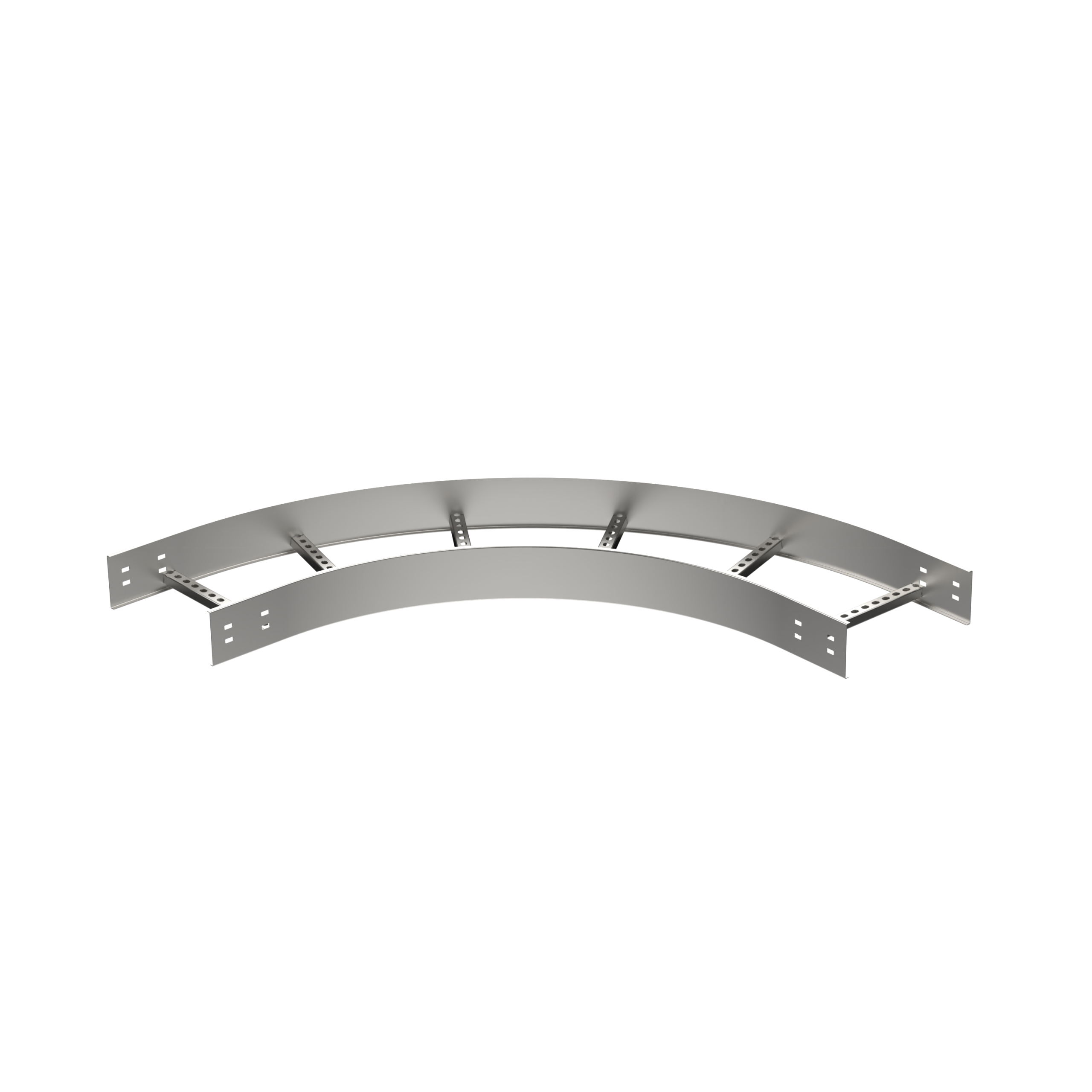

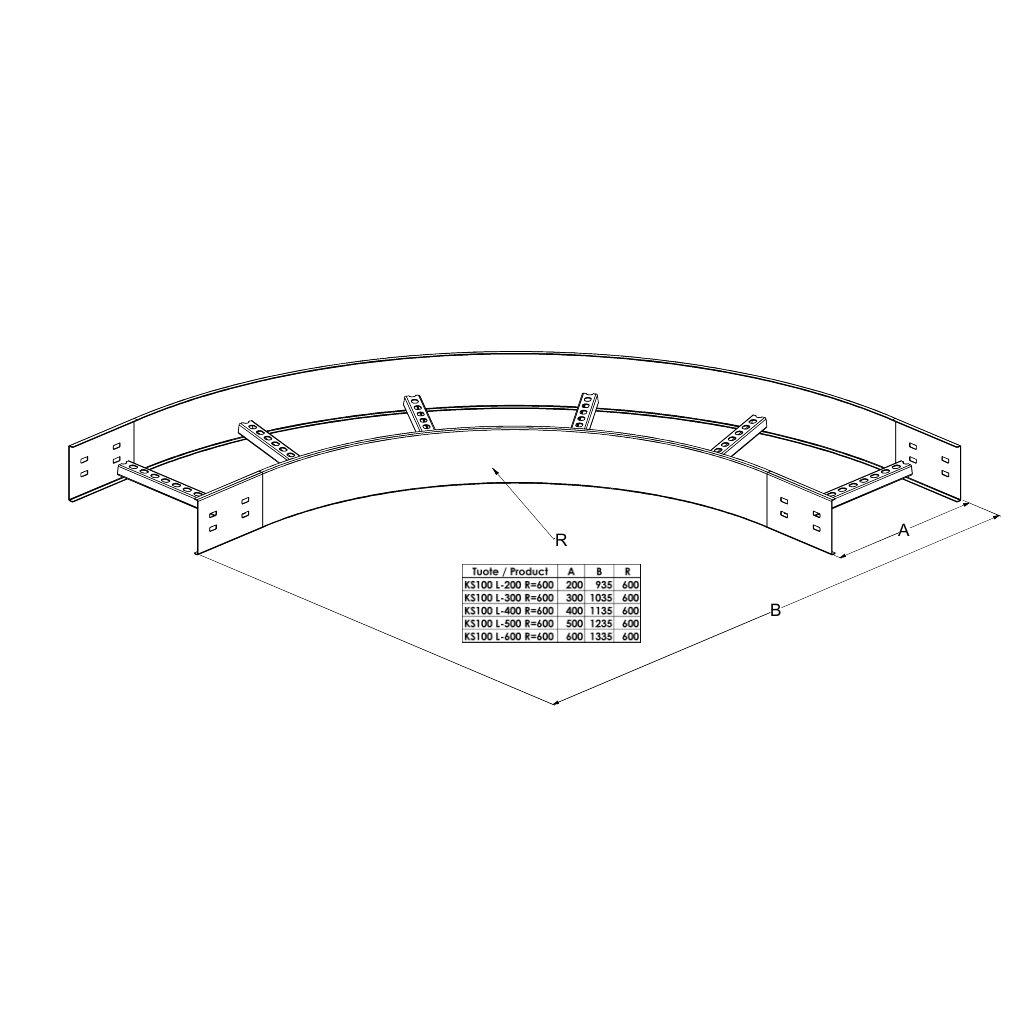

Bends KS100 L are used to make 90° angles for KS100-type cable ladders when the bending radius of cables or other needs require this. KS100 L inside radius is R=600 mm.

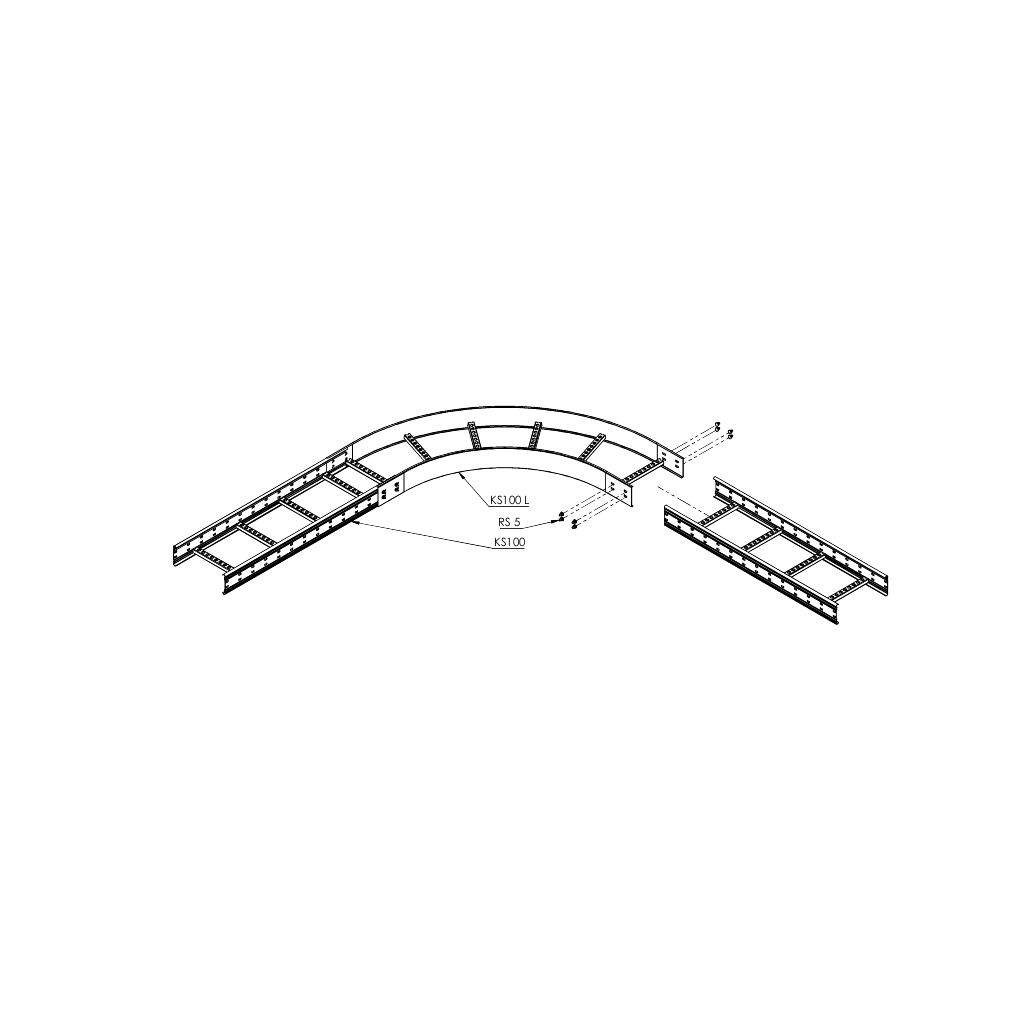

Bends can be connected to cable ladders by using joints KS100 J.
Loading Capacity kg
Length (mm)
Width (mm)
Height (mm)
Dimension L (mm)
Dimension A (mm)
Dimension B (mm)
Dimension C (mm)
Dimension D (mm)
Dimension E(mm)
Dimension F (mm)
Dimension G (mm)
Dimension H (mm)
Material thickness (mm)
Weight kg/PCE
Meka’s(*) product range is available in friendly and ready-to-be-used 2D-, 3D-, and Revit models.
Please contact technicalsupport@meka.eu to receive:
- 2D model of the product in DWG format
- 3D model of the product in STP format
- Autodesk™ Revit model
For your need to work on product models without a separate download, please request access to the Aveva™ E3D Design software.
(*)Not avaible for Unipro lighting tracks and adapters.
