KS100 J XPG

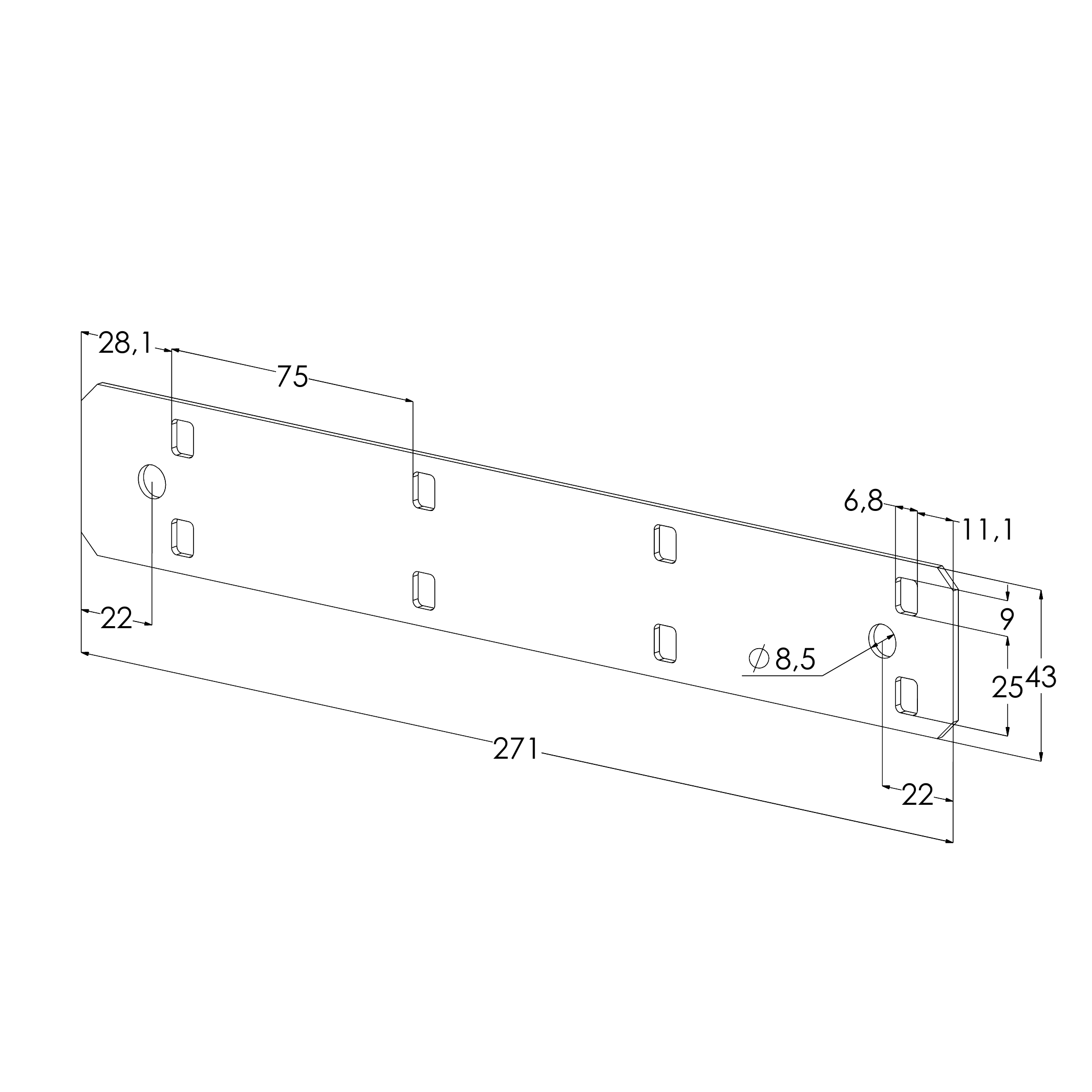

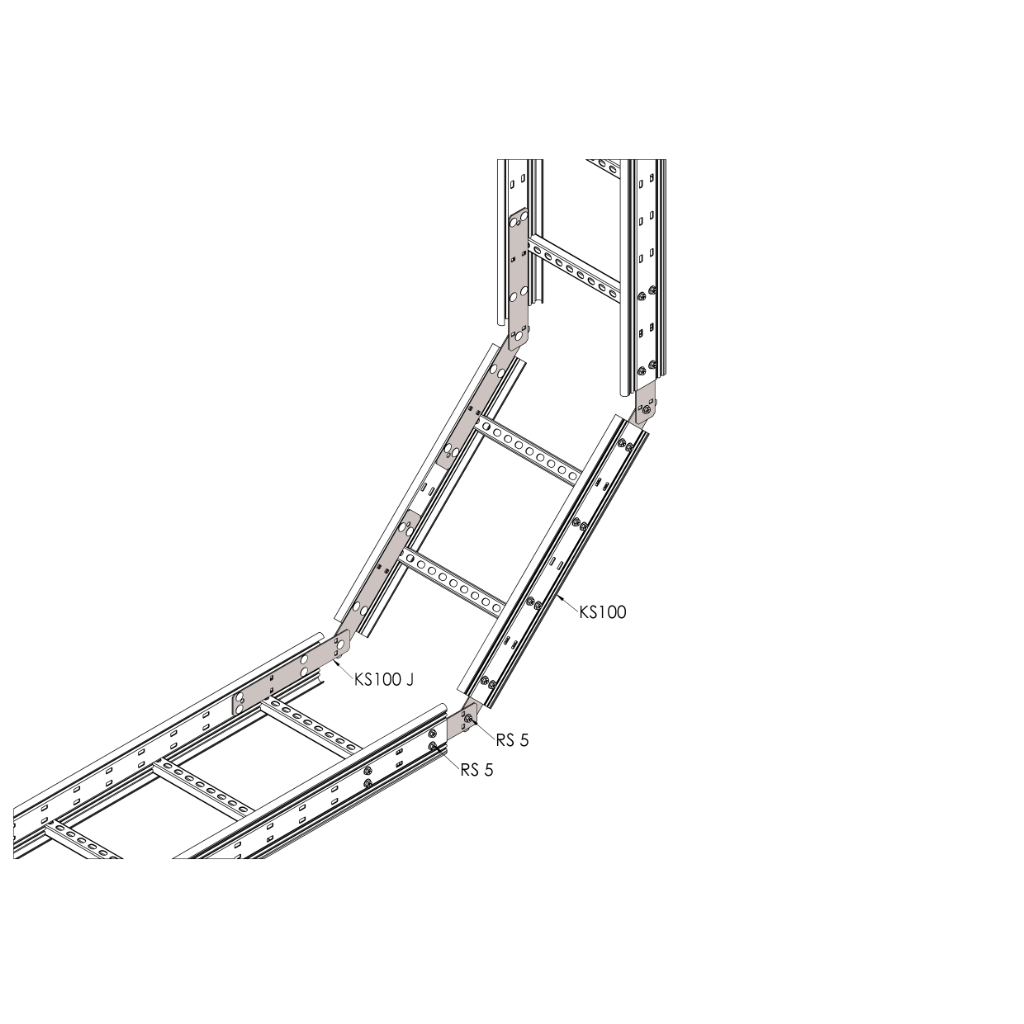

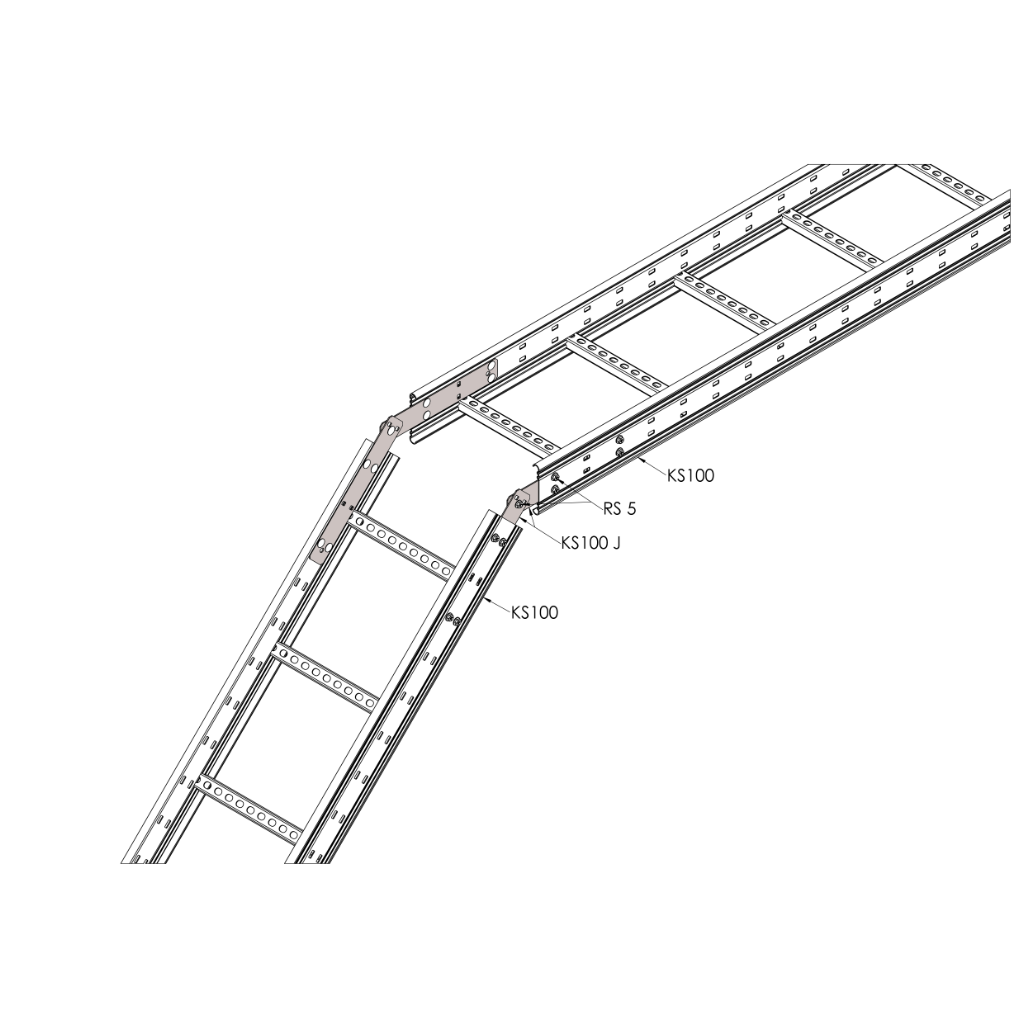

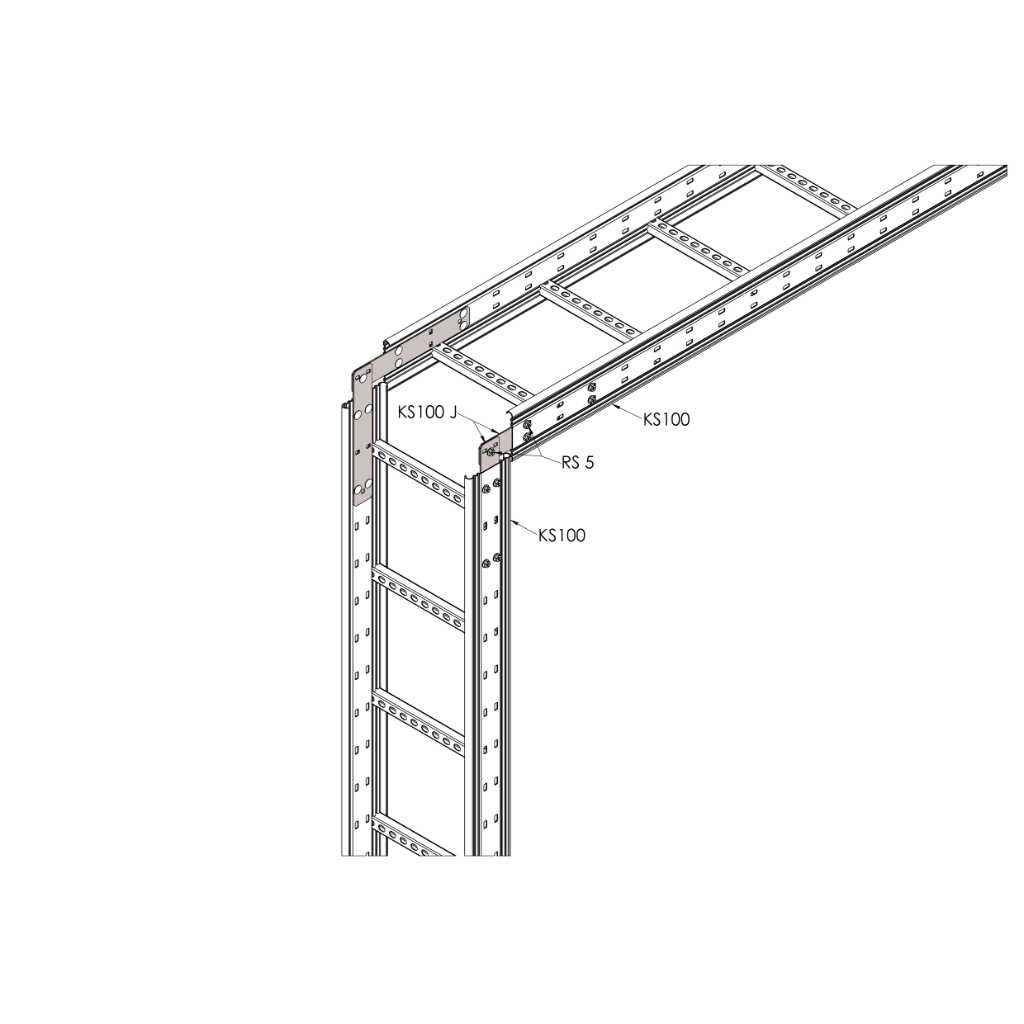

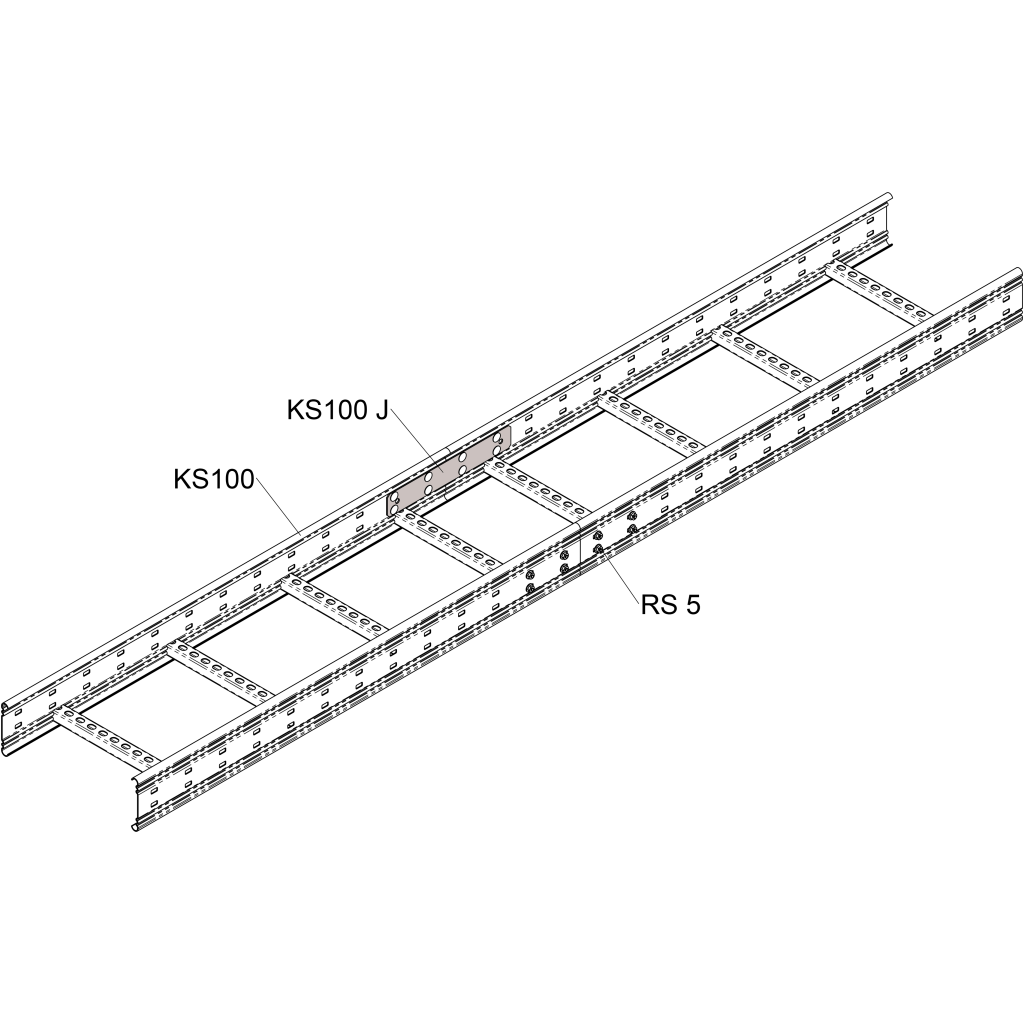

Joints KS100 J are used to extend KS100-type cable ladders. Product set includes unique M6x12 bolts and M6 nuts for fixing. At the top of bolts are square collars that hold bolts at place when tighten nuts.
Correctly installed joints create a sufficient electrical conductivity which eliminates the need to install a separate grounding wire between cable ladders.
Length (mm)
Width (mm)
Height (mm)
Material thickness (mm)
Weight kg/PCE
Meka’s(*) product range is available in friendly and ready-to-be-used 2D-, 3D-, and Revit models.
Please contact technicalsupport@meka.eu to receive:
- 2D model of the product in DWG format
- 3D model of the product in STP format
- Autodesk™ Revit model
For your need to work on product models without a separate download, please request access to the Aveva™ E3D Design software.
(*)Not avaible for Unipro lighting tracks and adapters.
Product image for illustration purposes only. Actual products may vary.
