KRA-40-600 L=2000 M
KRA height=40mm length=2000mm
[-]
Cable trays, non-perforated, are used in places where cables have to be totally invisible and protected underneath. KRA-type trays are typically used in office- and commercial buildings, schools, hospitals and shopping centres, but also in warehouses, parking halls and industrial buildings.
To extend KRA cable trays joints RSS can be used. Joints RSS-40-100…500 have a special forming that allow to fasten these directly to wall or ceiling supports.

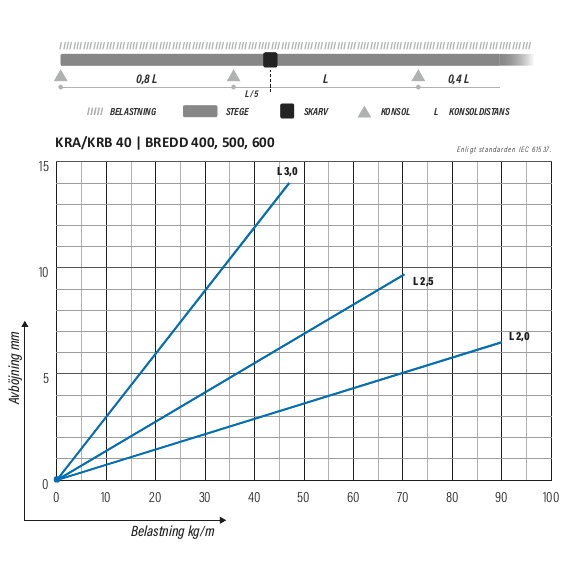

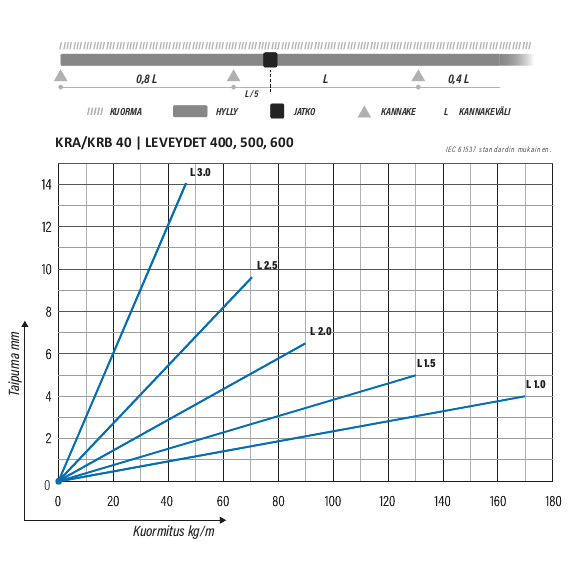

Loading Capacity kg
Length (mm)
Width (mm)
Height (mm)
Dimension L (mm)
Dimension A (mm)
Dimension B (mm)
Dimension C (mm)
Dimension D (mm)
Dimension E(mm)
Dimension F (mm)
Dimension G (mm)
Dimension H (mm)
Material thickness (mm)
Weight kg/PCE
Meka’s(*) product range is available in friendly and ready-to-be-used 2D-, 3D-, and Revit models.
Please contact technicalsupport@meka.eu to receive:
- 2D model of the product in DWG format
- 3D model of the product in STP format
- Autodesk™ Revit model
For your need to work on product models without a separate download, please request access to the Aveva™ E3D Design software.
(*)Not avaible for Unipro lighting tracks and adapters.
