KR-VU-60-300 PG

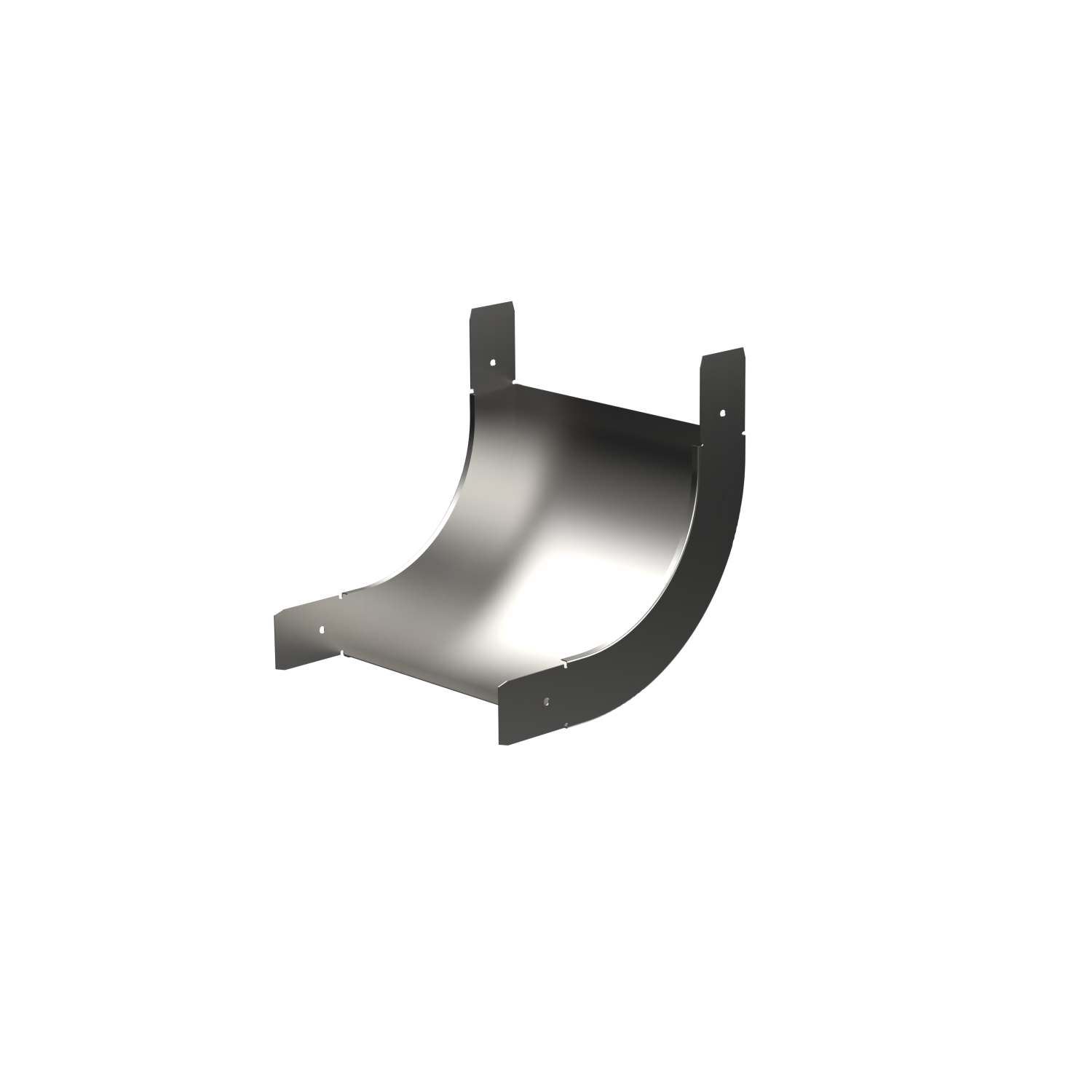

Corner piece
Categories KR-VU height=60mm[+]
Vertical bends KR-VU are used to make ascending 90° angles for KR-type cable trays when the bending radius of cables or other needs require this. KR-VU radius is R=200 mm.
Product Attributes
Dimension Data
Video
BIM
Product Attributes
Product Name
KR-VU-60-300 PG
Color
Grey
Material
Steel
Surface Finish
Manufactured of hot-dip galvanized steel in accordance with standard EN 10346
GTIN Code
6438377145965
Corrosion Category
C1-C2
Sales Unit
PCE
Packing Size
1 PCE
GWP total A1-A3
2.61
GWP calculation standard
EN 15804+A2:2019 and ISO 14025
GWP declaration valid until
2029-06-06
Stock Status
Not in Stock

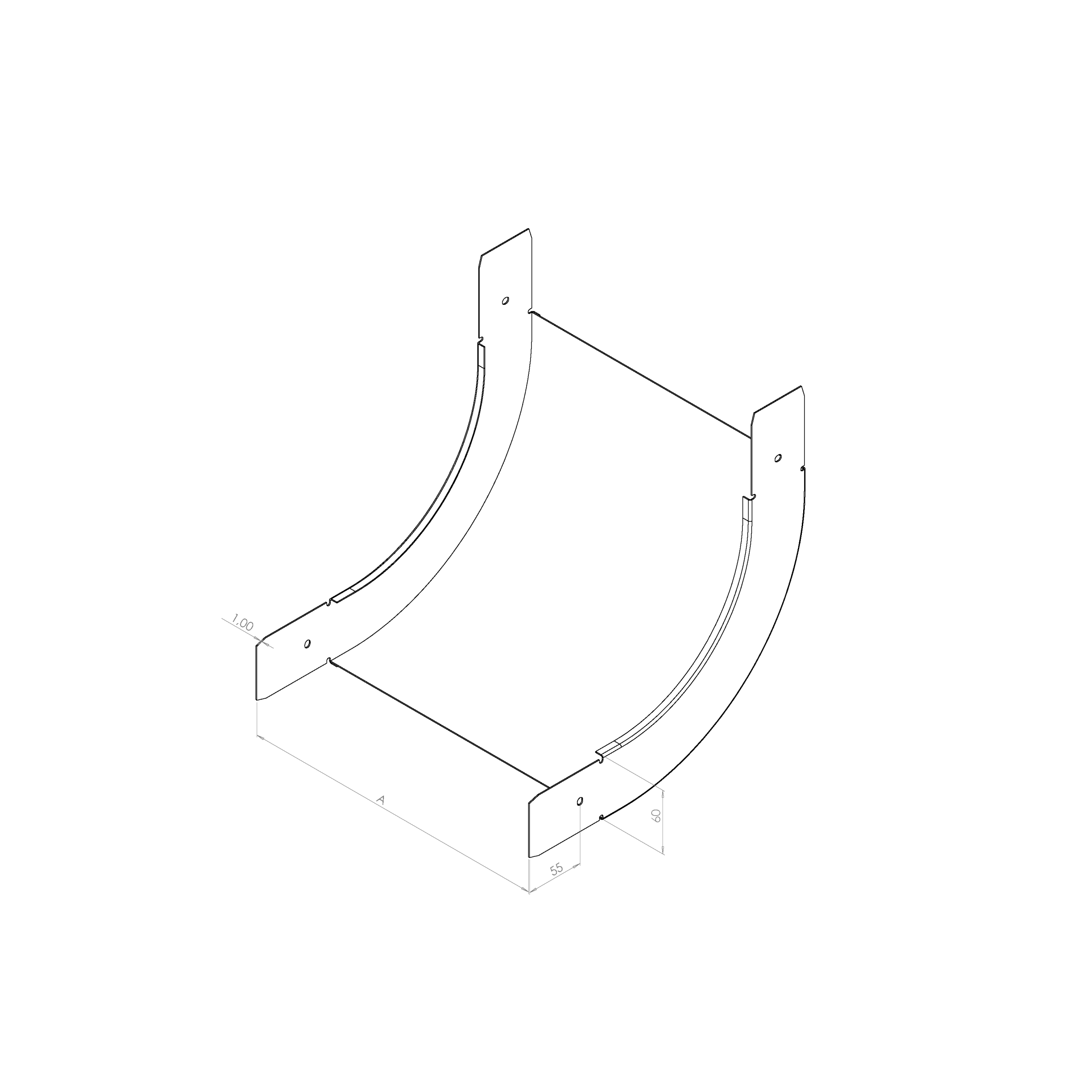

Dimension Data
Length (mm)
300
Width (mm)
300
Height (mm)
300
Dimension A (mm)
297,5
Material thickness (mm)
1
Weight kg/PCE
1.32
Video
BIM
Meka’s(*) product range is available in friendly and ready-to-be-used 2D-, 3D-, and Revit models.
Please contact technicalsupport@meka.eu to receive:
- 2D model of the product in DWG format
- 3D model of the product in STP format
- Autodesk™ Revit model
For your need to work on product models without a separate download, please request access to the Aveva™ E3D Design software.
(*)Not avaible for Unipro lighting tracks and adapters.
