KR-VD-60-100 M
Corner piece
Categories KR-VD height=60mm[+]
Vertical bends KR-VD are used to make descending 90° angles for KR-type cable trays when the bending radius of cables or other needs require this. KR-VD radius is R=140 mm.
Product Attributes
Dimension Data
Video
BIM
Product Attributes
Product Name
KR-VD-60-100 M
Color
White
Material
Steel
Surface Finish
White RAL 9010 polyester paint coating
GTIN Code
6438377145828
Corrosion Category
C1-C2
Sales Unit
PCE
Packing Size
1 PCE
Stock Status
Not in Stock

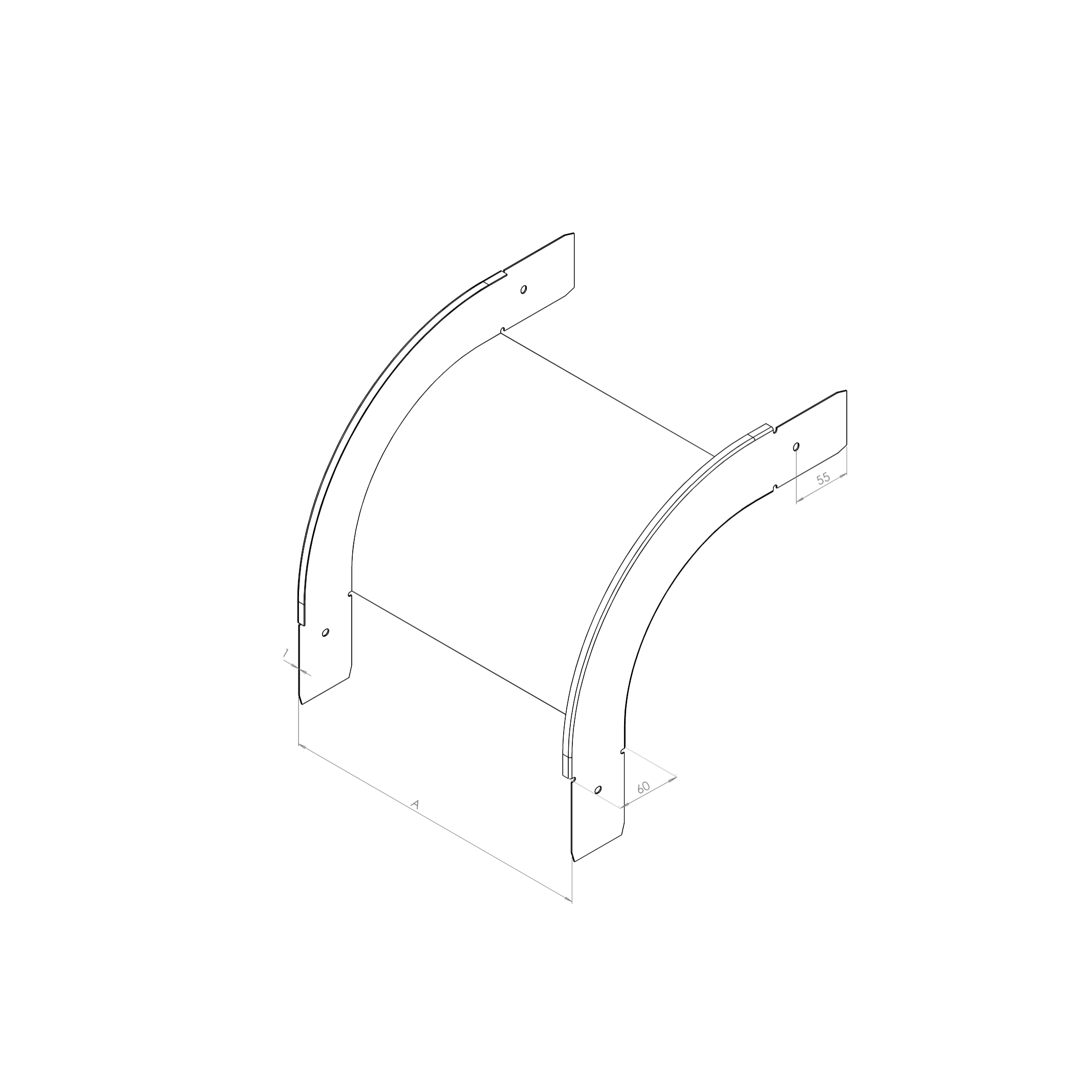

Dimension Data
Length (mm)
300
Width (mm)
100
Height (mm)
300
Dimension A (mm)
97,5
Material thickness (mm)
1
Weight kg/PCE
0.69
Video
BIM
Meka’s(*) product range is available in friendly and ready-to-be-used 2D-, 3D-, and Revit models.
Please contact technicalsupport@meka.eu to receive:
- 2D model of the product in DWG format
- 3D model of the product in STP format
- Autodesk™ Revit model
For your need to work on product models without a separate download, please request access to the Aveva™ E3D Design software.
(*)Not avaible for Unipro lighting tracks and adapters.

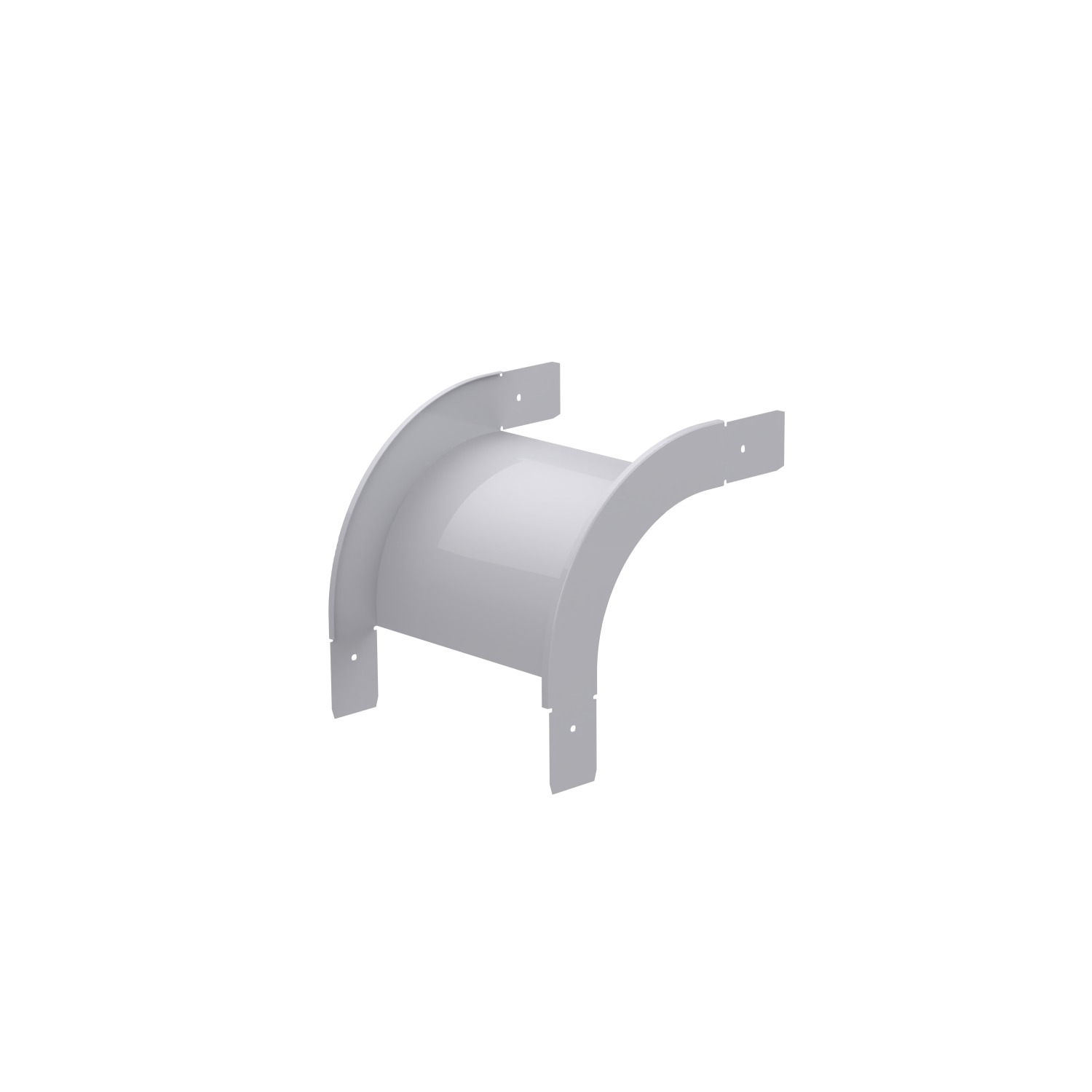

Product image for illustration purposes only. Actual products may vary.
