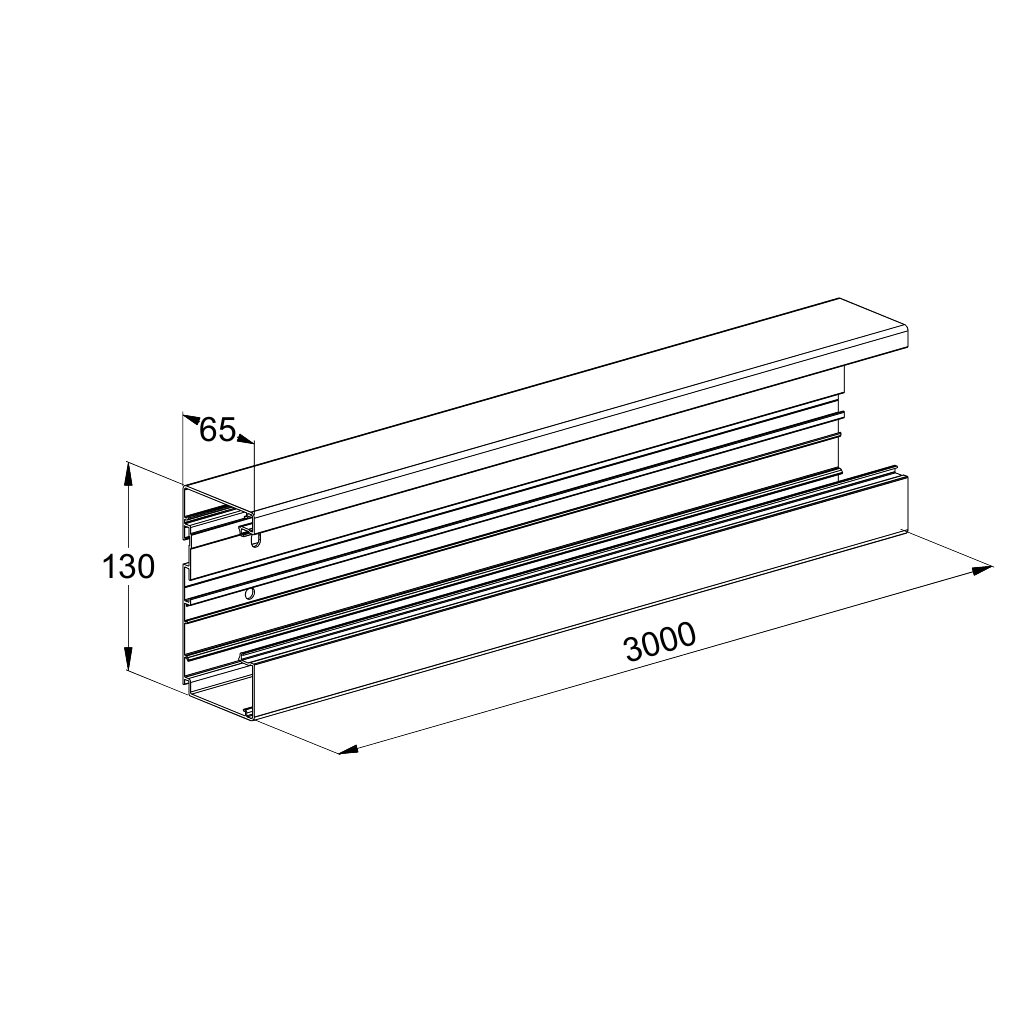

INSTAL 130 L=3000 M PW
Universal one-section aluminium trunkings INSTAL 130 are used for installing 80 mm sockets and fixtures of different manufacturers – directly or by using mounting boxes BASIC MB. To extend trunkings joints INSTAL J can be used. The cross-section area of INSTAL 130 is 7440 mm².
Product set includes trunking base, covers INSTAL K80 shall be ordered separately. Visible surfaces of trunkings are covered with protective film, which is removed after installation.
Loading Capacity kg
Length (mm)
Width (mm)
Height (mm)
Dimension L (mm)
Dimension A (mm)
Dimension B (mm)
Dimension C (mm)
Dimension D (mm)
Dimension E(mm)
Dimension F (mm)
Dimension G (mm)
Dimension H (mm)
Material thickness (mm)
Weight kg/PCE
Meka’s(*) product range is available in friendly and ready-to-be-used 2D-, 3D-, and Revit models.
Please contact technicalsupport@meka.eu to receive:
- 2D model of the product in DWG format
- 3D model of the product in STP format
- Autodesk™ Revit model
For your need to work on product models without a separate download, please request access to the Aveva™ E3D Design software.
(*)Not avaible for Unipro lighting tracks and adapters.
Product image for illustration purposes only. Actual products may vary.
