HST VK3
Wall brackets VK3 are used for mounting KS20-, KS60- and KS80-type cable ladders to wall, floor and ceiling. Brackets can also be used for fixing various devices to the side profiles of cable ladders. Wall brackets VK3 are installed around cable ladder profile and fixed with a bolt and nut included to product set.
When using brackets VK3 the distance between cable ladders and surface is approximately 80 mm.
Loading Capacity kg
Length (mm)
Width (mm)
Height (mm)

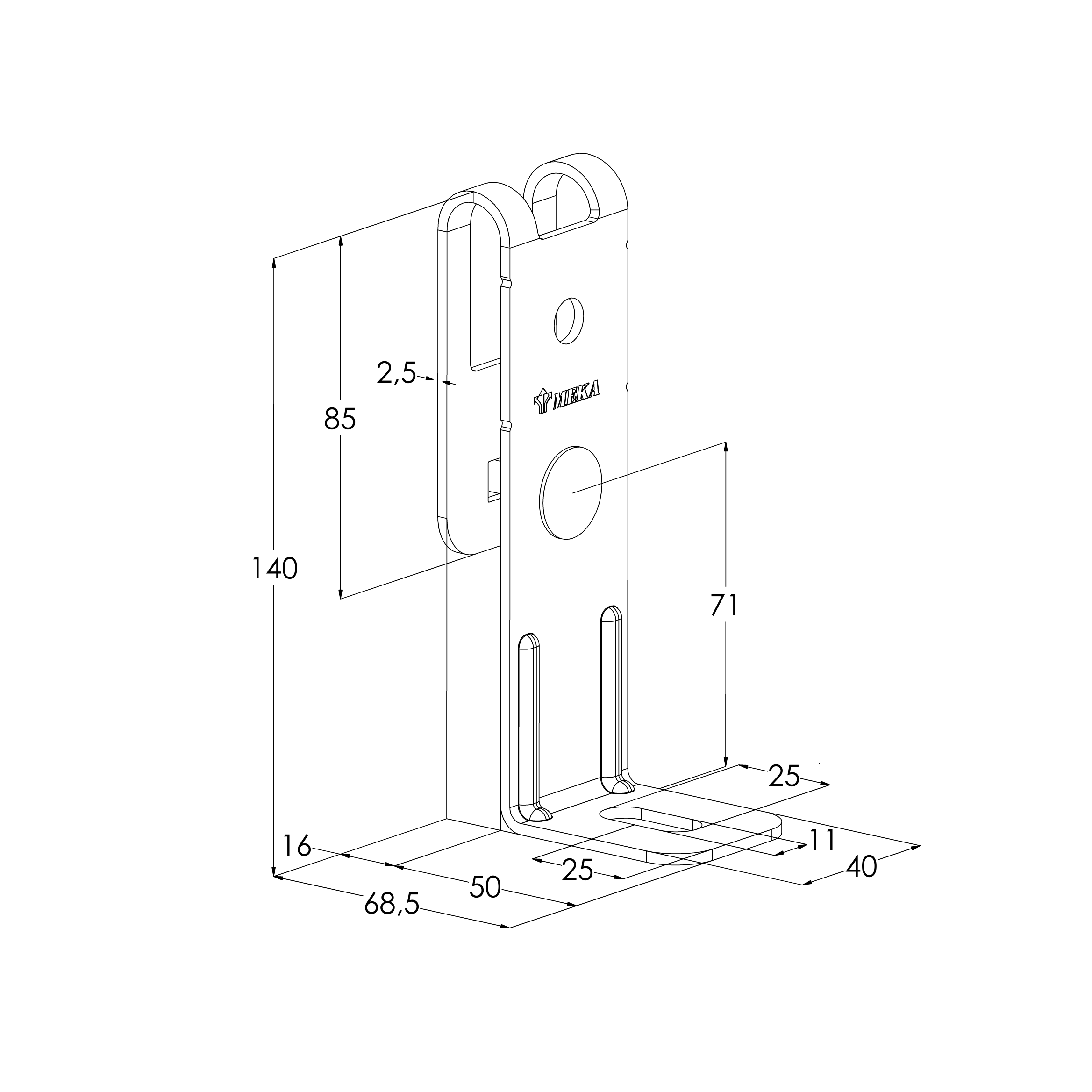

Dimension L (mm)
Dimension A (mm)
Dimension B (mm)
Dimension C (mm)
Dimension D (mm)
Dimension E(mm)
Dimension F (mm)
Dimension G (mm)
Dimension H (mm)
Material thickness (mm)
Weight kg/PCE
Meka’s(*) product range is available in friendly and ready-to-be-used 2D-, 3D-, and Revit models.
Please contact technicalsupport@meka.eu to receive:
- 2D model of the product in DWG format
- 3D model of the product in STP format
- Autodesk™ Revit model
For your need to work on product models without a separate download, please request access to the Aveva™ E3D Design software.
(*)Not avaible for Unipro lighting tracks and adapters.
Product image for illustration purposes only. Actual products may vary.
