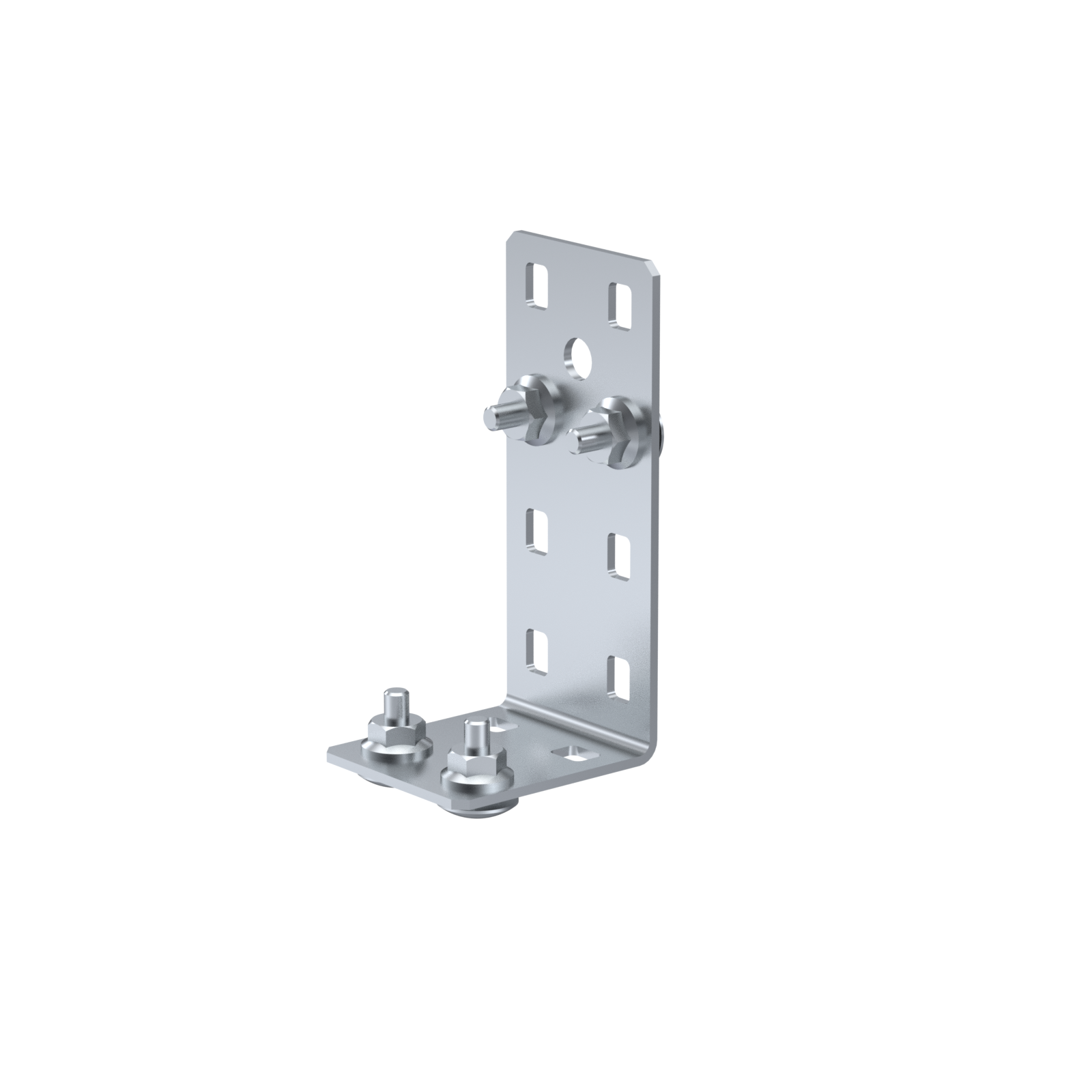

HST KS100 UB

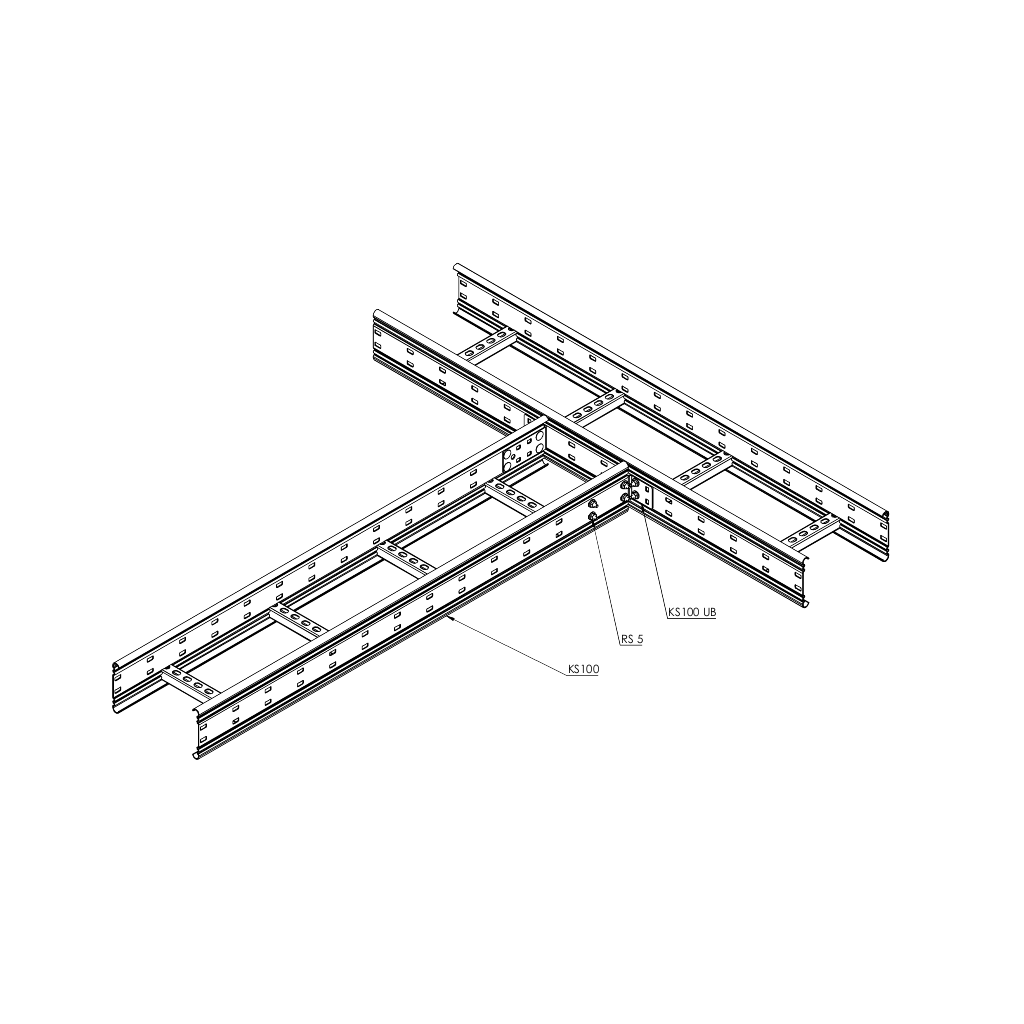

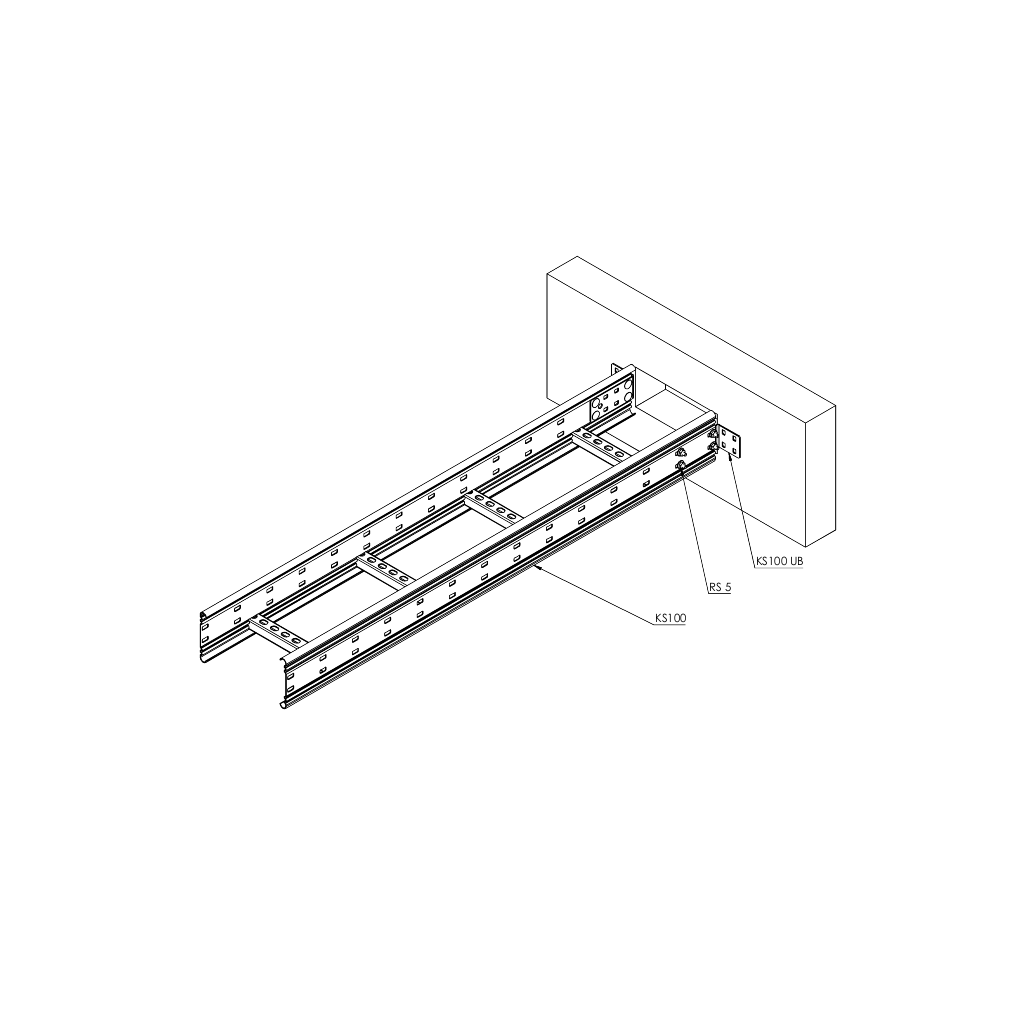

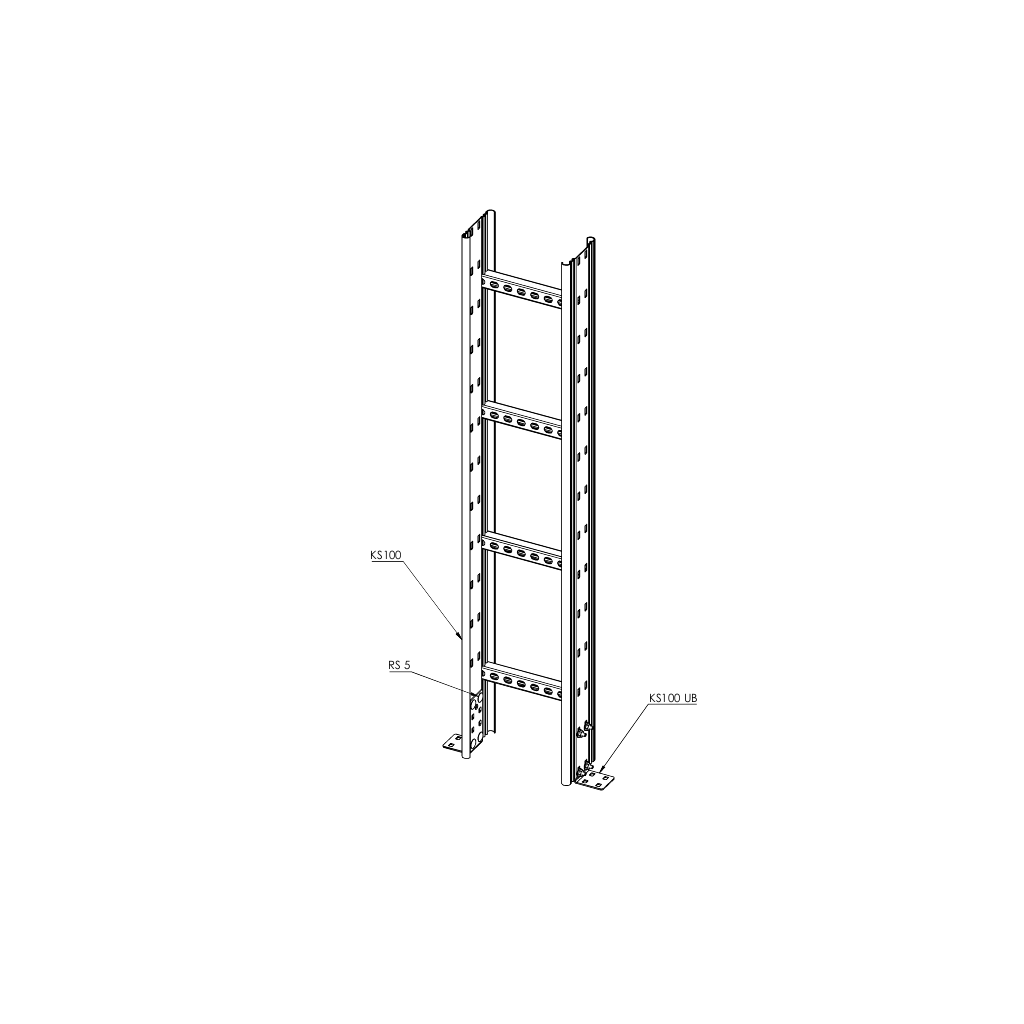

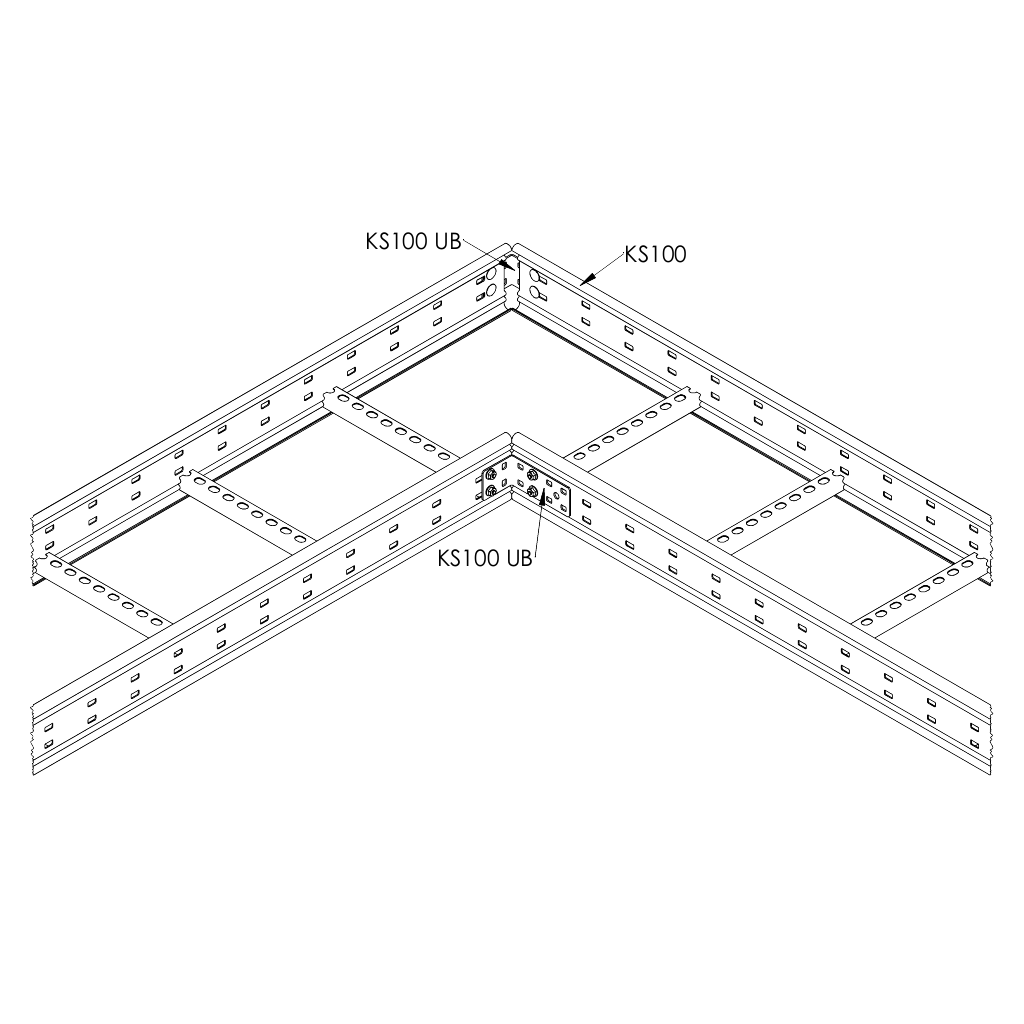

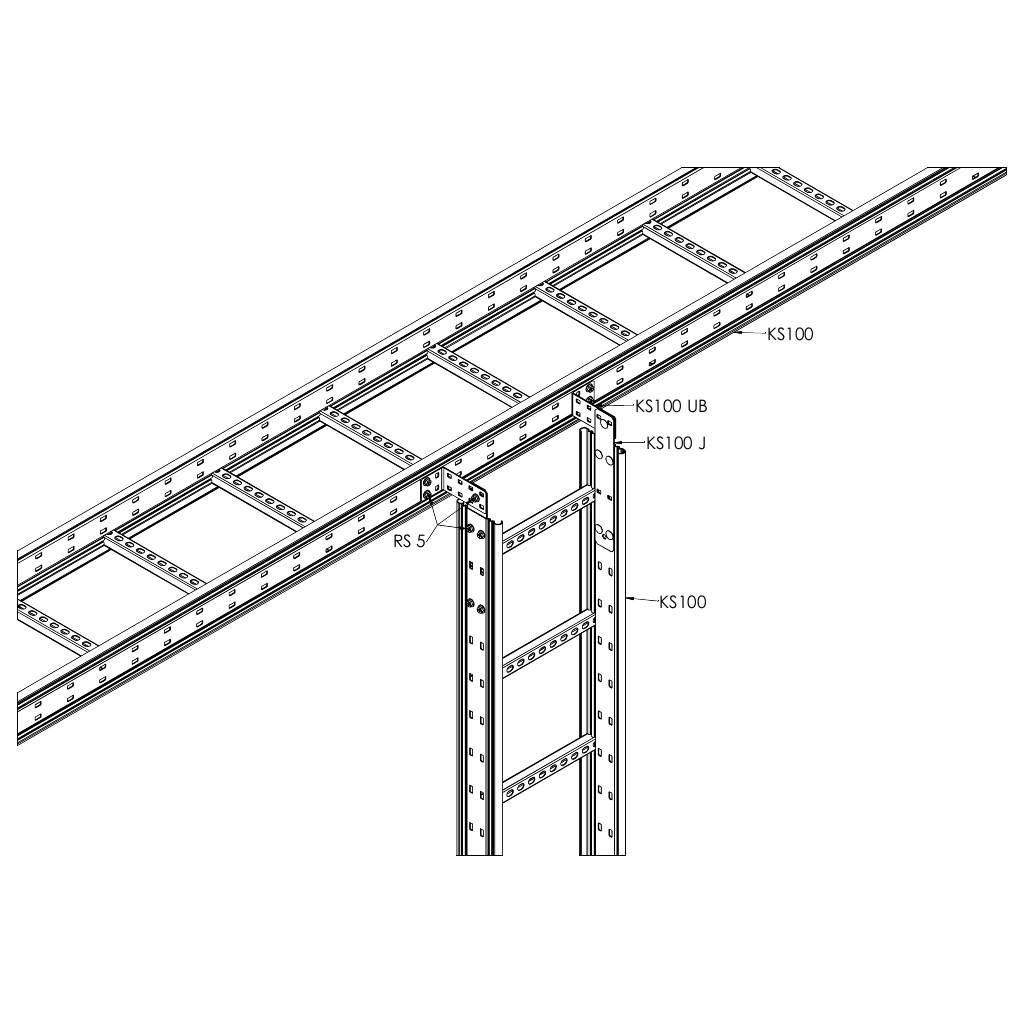

Universal brackets KS100 UB are used to make T- and X-junctions as well as, together with joints KS100 J, vertical connections of KS100-type cable ladders. Brackets UB can be also used for fixing additional equipment into KS100 cable ladders’ side profiles.
Product set includes bolts and nuts for fixing.
Loading Capacity kg

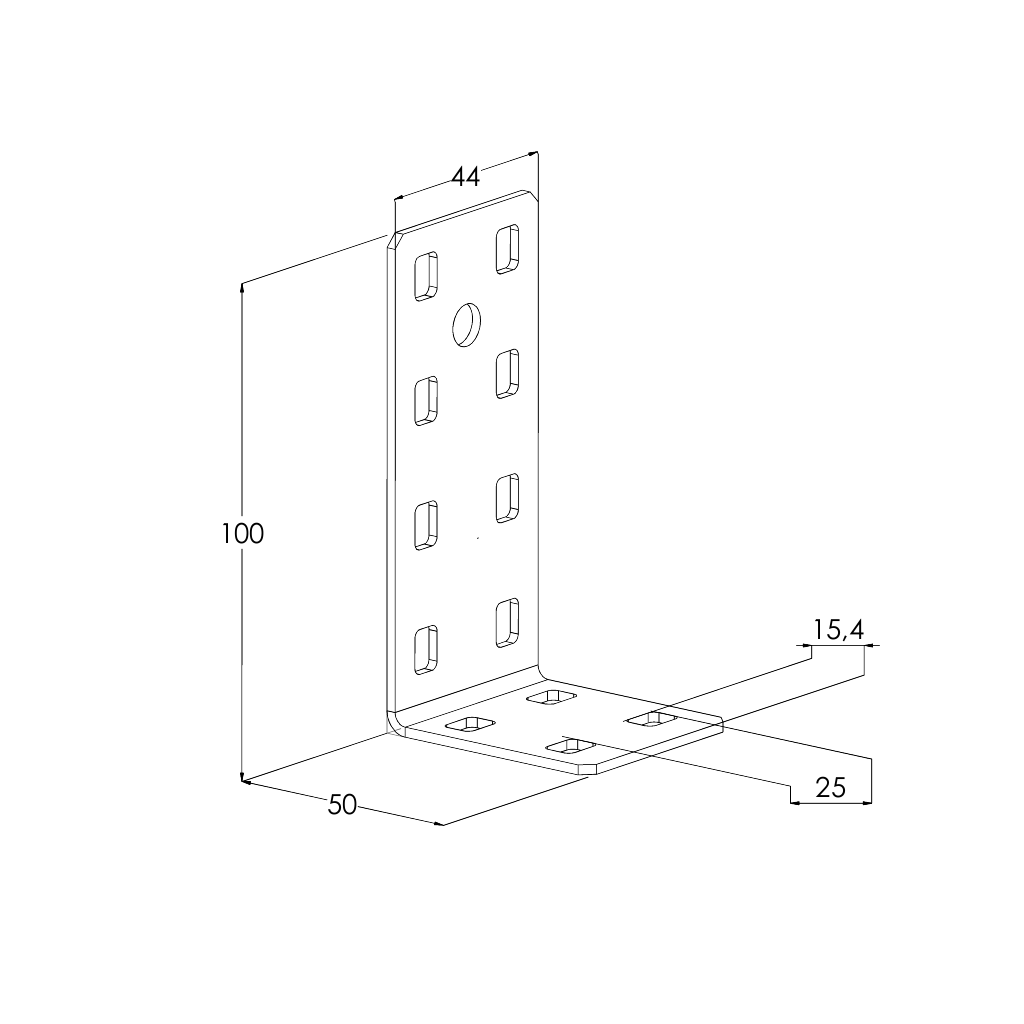

Length (mm)
Width (mm)
Height (mm)
Dimension L (mm)
Dimension A (mm)
Dimension B (mm)
Dimension C (mm)
Dimension D (mm)
Dimension E(mm)
Dimension F (mm)
Dimension G (mm)
Dimension H (mm)
Material thickness (mm)
Weight kg/PCE
Meka’s(*) product range is available in friendly and ready-to-be-used 2D-, 3D-, and Revit models.
Please contact technicalsupport@meka.eu to receive:
- 2D model of the product in DWG format
- 3D model of the product in STP format
- Autodesk™ Revit model
For your need to work on product models without a separate download, please request access to the Aveva™ E3D Design software.
(*)Not avaible for Unipro lighting tracks and adapters.
Product image for illustration purposes only. Actual products may vary.
