HST AP-40 L=2000

Separation plate
Categories AP separation plates[+]

Separation plates AP are used to separate cables, especially low and high voltage cables, within cable ladders, cable trays and wire mesh trays.

AP plates can be fixed by using cable ties, bolts and nuts or screws. When separation plates are used inside non-perforated cable trays KRA then support plates APT can be used for fixing.

Product Name
HST AP-40 L=2000
SKU
1430401
Color
Grey
Material
Acid-proof steel
Surface Finish
Manufactured of stainless steel in accordance with standard EN 10088
GTIN Code
6438377005726
Corrosion Category
C1-CX
Fire Resistance
E90

Loading Capacity kg

Sales Unit
PCE
Packing Size
10 PCE
GWP total A1-A3
3.02
GWP calculation standard
GWP declaration valid until
Stock Status
Not in Stock

Length (mm)

2000

Width (mm)

35

Height (mm)

25

Dimension L (mm)

2000

Dimension A (mm)

Dimension B (mm)

Dimension C (mm)

Dimension D (mm)

Dimension E(mm)

Dimension F (mm)

Dimension G (mm)

Dimension H (mm)

25

Material thickness (mm)

Weight kg/PCE

0.58

Meka’s(*)  product range is available in friendly and ready-to-be-used 2D-, 3D-, and Revit models.

Please contact technicalsupport@meka.eu to receive:

  • 2D model of the product in DWG format
  • 3D model of the product in STP format
  • Autodesk™ Revit model

For your need to work on product models without a separate download, please request access to the Aveva™ E3D Design software.

(*)Not avaible for Unipro lighting tracks and adapters.

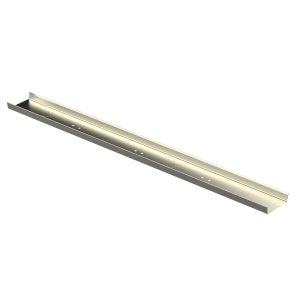

HST AP-40 L=2000
HST AP-40 L=2000 - Image 2
HST AP-40 L=2000 - Image 3
HST AP-40 L=2000 - Image 4

Product image for illustration purposes only. Actual products may vary.
